Home :: Mikrotik Switches :: Mikrotik RouterBoard RB260GSP (CSS106-1G-4P-1S) Smart Gigabit Switch with five-10/100/1000 ethernet ports, POE output, one SFP port, and SwOS
Printable version

Mikrotik RouterBoard RB260GSP (CSS106-1G-4P-1S) Smart Gigabit Switch with five-10/100/1000 ethernet ports, POE output, one SFP port, and SwOS

Mikrotik RouterBoard RB260GSP (CSS106-1G-4P-1S) Smart Gigabit Switch with five-10/100/1000 ethernet ports, POE output, one SFP port, and SwOS
View detailed images (3)

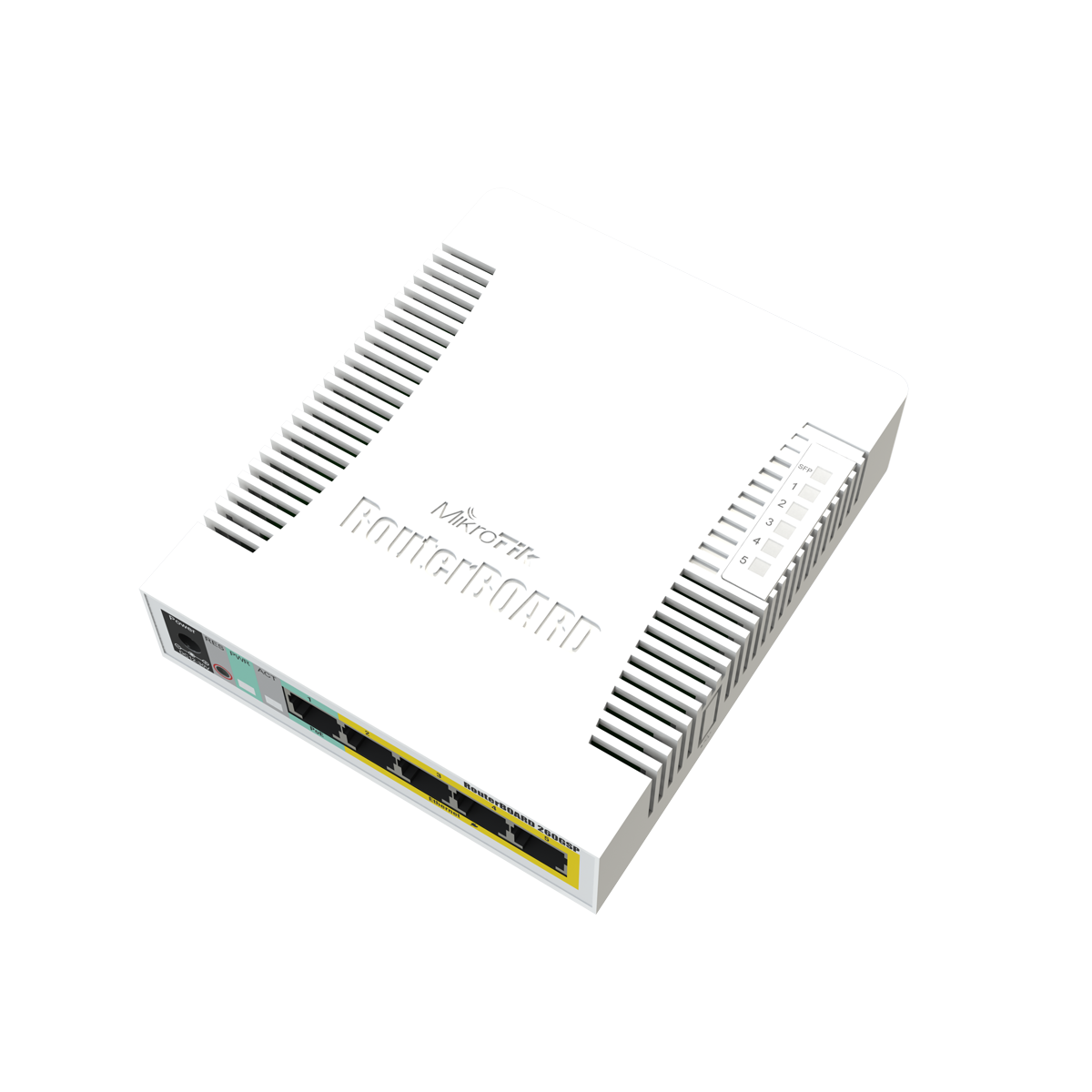

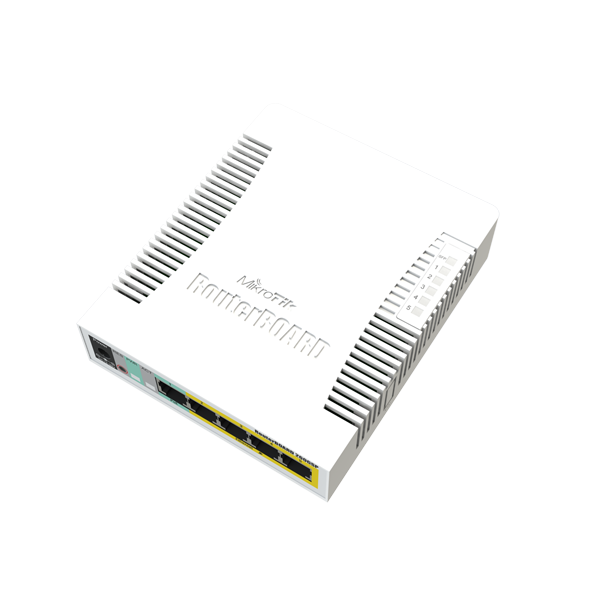

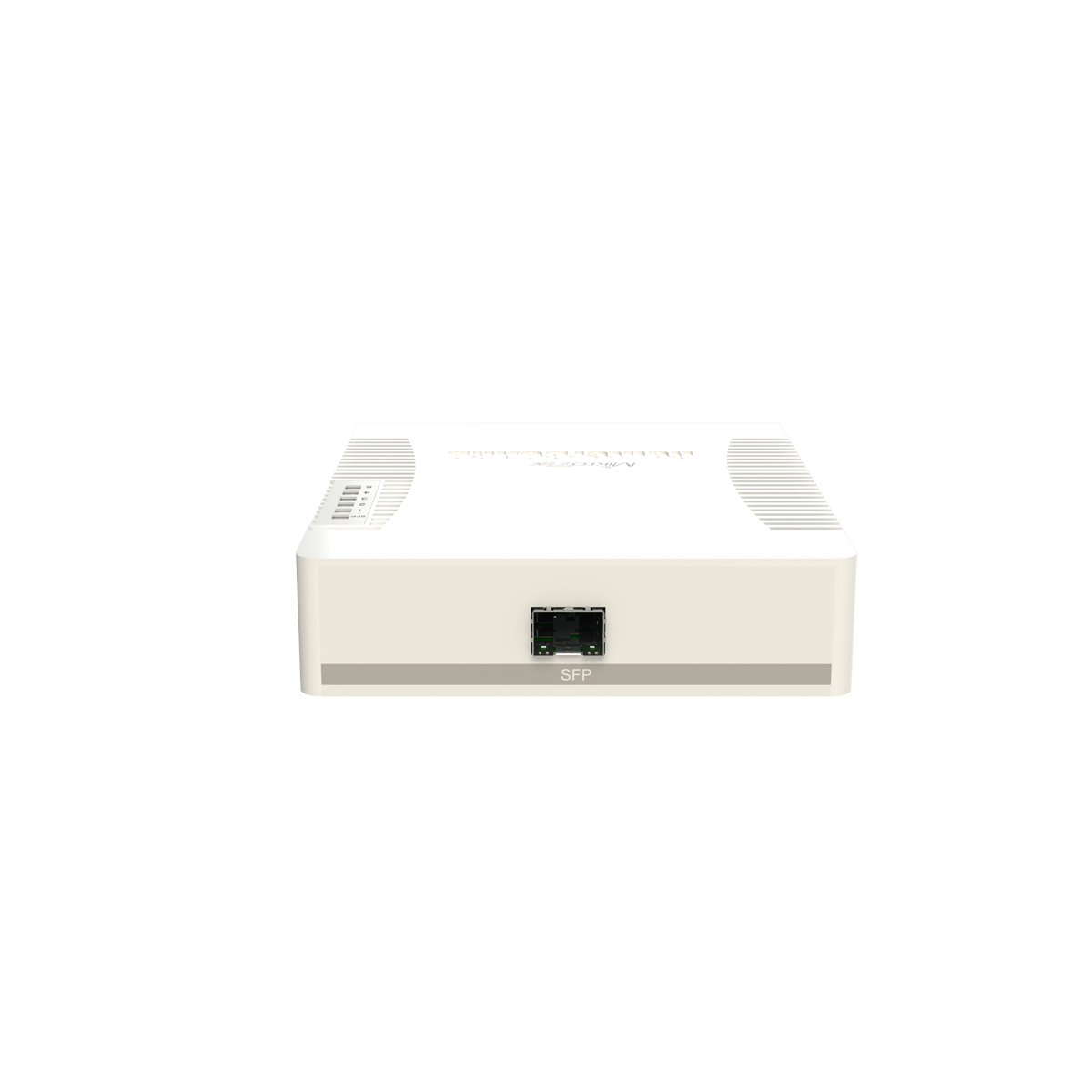

RB260GSP Top RB260GSP Front RB260GSP Back
The RB260GSP aka CSS106-1G-4P-1S is a low cost SOHO switch in a small plastic case. It has 5 Gigabit ethernet ports powered by an Atheros switch AR8327. This model can source power to other Mikrotik devices. Passive PoE output is available on ports 2-5 with a maximum current of 500mA per port.

Also included is one fixed Gigabit Ethernet SFP cage on the back of the unit. (Mini-GBIC; SFP module not included)

RB260GSP is powered by a new operating system designed specifically for Mikrotik Switch products - SwOS.

SwOS is configurable from your web browser. It gives you all the basic functionality of a managed switch, plus more.

Advanced SwOS features allow you to:

  • manage port to port forwarding
  • apply MAC filters
  • configure VLANs
  • mirror traffic
  • apply bandwidth limitations
  • adjust some MAC and IP header fields
  • support jumbo frames (up to 9K)

The SwOS On-line Manual can be found here.
SKU RB260GSP
Weight 2.10 lbs
Data Sheet (PDF) Brochure
Quick Guide
Power Supply Options

Our price: $55.95
19%
Market price: $69.00
Quantity Price
20-59 Items $54.00
60+ Items $53.00
*Note:
Quantity Out of stock
: *
: *
: *
