Home :: miniPCI/miniPCIe radios :: R11e-5HnD Mikrotik 802.11a/n High Power MiniPCIe card - 500mw output Atheros AR9580 chipset - New!

R11e-5HnD Mikrotik 802.11a/n High Power MiniPCIe card - 500mw output Atheros AR9580 chipset - New!

R11e-5HnD Mikrotik 802.11a/n High Power MiniPCIe card - 500mw output Atheros AR9580 chipset - New!

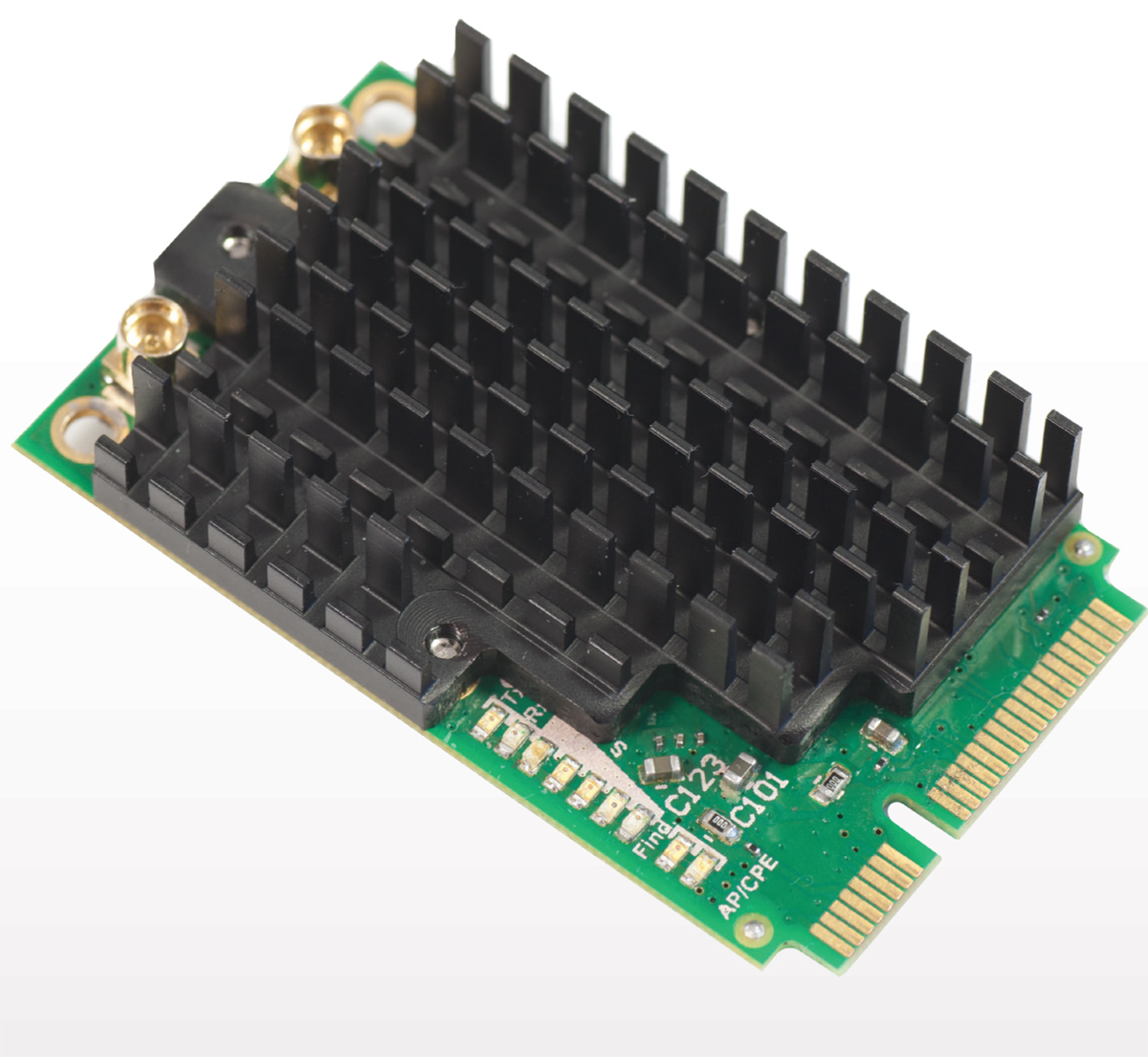

R11e-5HnD Hi-Res
Mikrotik's R11e-5HnD is a wireless 5GHz 802.11a/n miniPCI-e card for high speed applications, with up to 500mW output power and -96dBm receive sensitivity. 5GHz 802.11a/n High Power MiniPCIe card - 500mw output Atheros AR9580 chipset

The card features built-in LED indicators for wireless mode, connection status (connected, searching, disabled), TX and RX activity and wireless signal strength - just looking at the card will help with installation and alignment.

Add a second radio to Mikrotiik RouterBoard models RB912UAG-5HPnD or RB912UAG-2HPnD. Add up to 4 radios in a PC with Mikrotik RouterBoard RB44Ge.

  • 4920-5920MHz miniPCI-e IEEE 802.11a/n standard
  • Output Power of up to 27dBm
  • Support for up to 2x2 MIMO with spatial multiplexing
  • Atheros AR9580, chipset
  • High Performance (up to 300Mbps physical data rates and 200Mbps of actual user throughput) with Low Power Consumption
  • Two MMCX Antenna Connectors
  • Modulations: OFDM: BPSK, QPSK, 16 QAM, 64QAM DSSS: DBPSK, DQPSK, CCK
  • Operating temperatures: -50ēC to +65ēC
  • Max power consumption 5W
  • ESD protection +/- 12kV on RF ports

NOTE: There was a mistake in initial published technical documentation for R11e-5HnD devices. Actual maximum TX power for those is 27dBm not 30dBm. 27dBm = 500mW and is the correct specification.

SKU R11e-5HnD
Weight 0.10 lbs
Documentation (PDF) Brochure


Our price: $39.00
20%
Market price: $49.00
Quantity Price
10-19 Items $38.00
20-49 Items $36.00
50-99 Items $35.00
100+ Items $34.00
*Note:
Quantity (50 available)
: *
: *
: *
