Mikrotik RouterBoard CCR1016-12S-1S+ Extreme Performance Cloud Core Router with 12 SFP ports, 1 SFP+ port and RouterOS Level 6 license - New!

Mikrotik RouterBoard CCR1016-12S-1S+ Extreme Performance Cloud Core Router with 12 SFP ports, 1 SFP+ port and RouterOS Level 6 license - New!

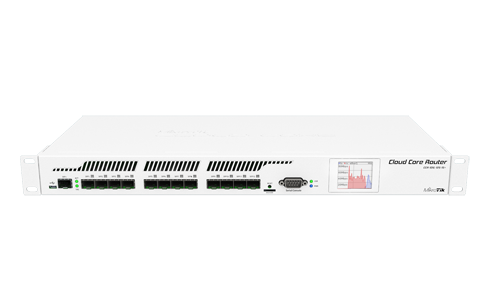

CCR1016-12S-1S+ Extreme Performance Cloud Core Router

CCR1016 is an industrial grade super fast router with cutting edge 16 core CPU. If you need many millions of packets per second - Cloud Core Router is your best choice.

The device is available with a 1U rackmount case (CCR1016-12G) or without the case as a board unit (CCR1016-12G-BU), has twelve Gigabit ethernet ports, a serial console cable and a USB port.

The CCR1016-12G has two SODIMM slots, by default it is shipped with 2GB of RAM, but has no memory limit in RouterOS (will accept and utilize 16GB or more).

  •  16 core networking CPU, 1.2GHz clock per core
  •  12 Mbytes total on-chip cache
  •  State of the art TILE GX architecture
  •  12x SFP ports for 1 Gigabit connectivity
  •  1x SFP+ port for 10 Gigabit connectivity
  •  1U rackmount case option
  •  Color touchscreen LCD display
  •  Two power supplies for redundancy
  •  Up to 1.5 mpps throughput in regular mode
  •  Up to 17.8 mpps throughput in fastpath mode (wire speed)
  •  Up to 12 Gbps throughput with common RouterOS configurations

SKU CCR1016-12S-1S+
Weight 7.00 lbs
Documentation (PDF) Brochure
Power Cord

Our price: $715.00
17%
Market price: $859.00
Quantity Price
2-4 Items $710.00
5-9 Items $705.00
10+ Items $699.00
