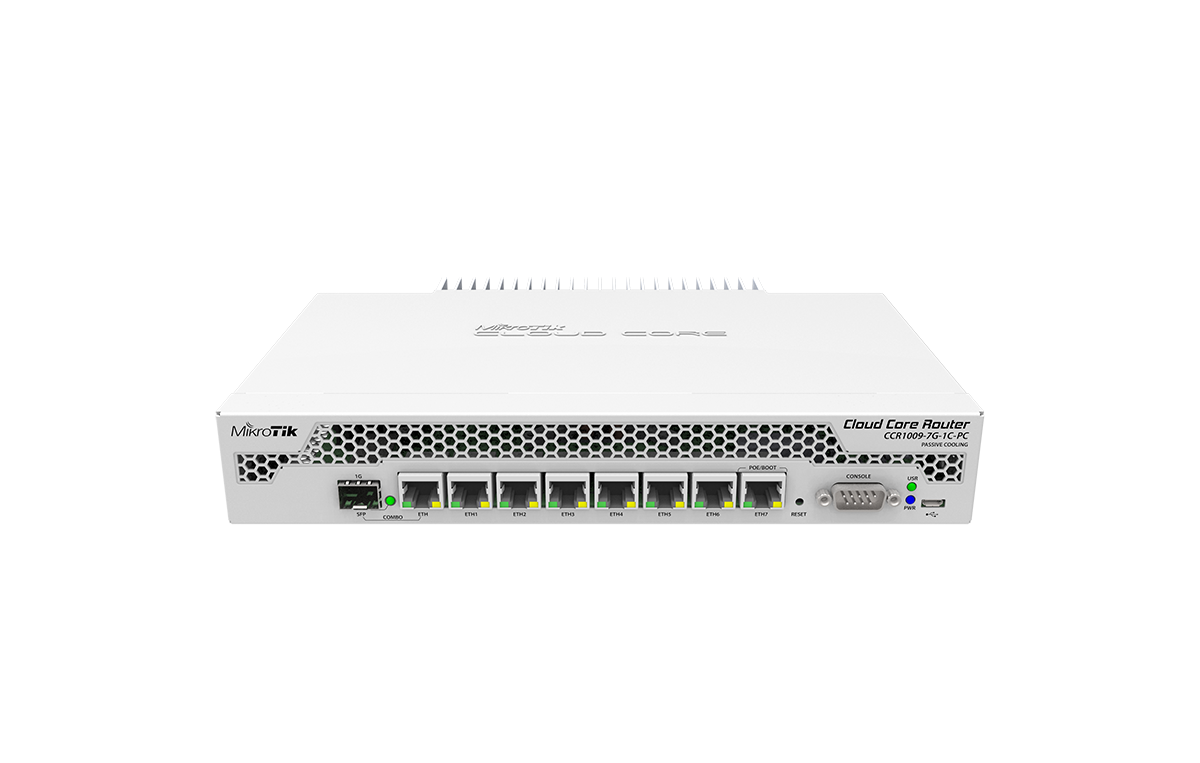

Mikrotik RouterBoard CCR1009-7G-1C-PC High Performance Cloud Core Router with 7-10/100/1000 ethernet ports, 1 combo ethernet / SFP port and RouterOS Level 6 license - New!

CCR1009-7G-1C-PC is a low cost industrial grade router with Tilera 9 core CPU! Amazing power and performance for value - this is our lowest cost CCR device, the Cloud Core Router (CCR1009). If you need many packets per second on a budget - Cloud Core Router with 9 cores is your best choice.

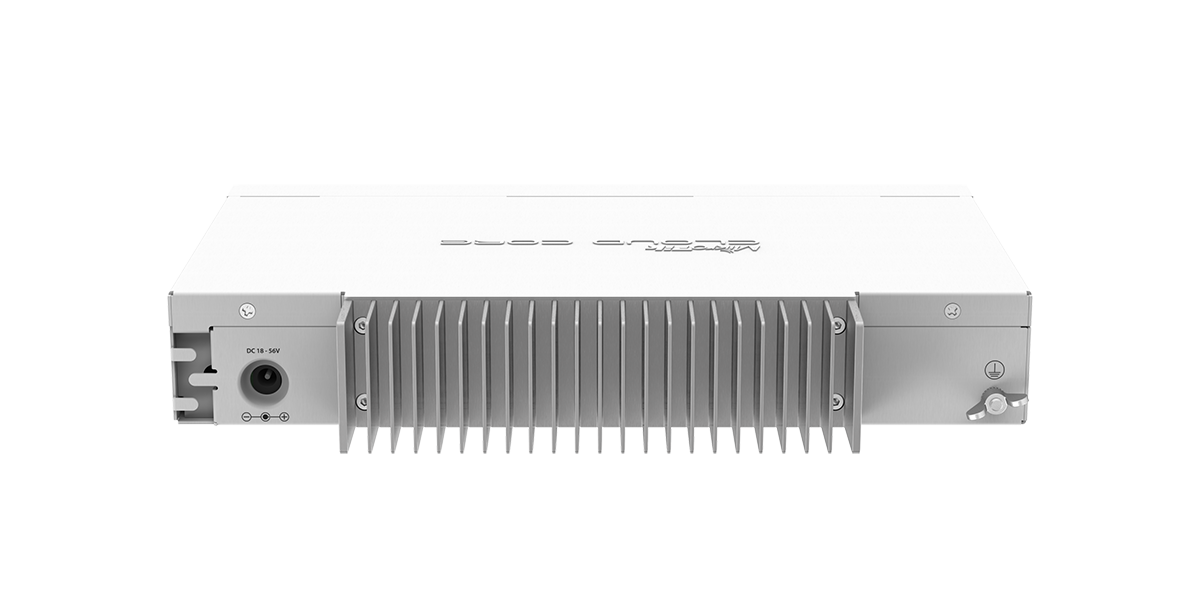

The device comes in a desktop case with silent heat pipe cooling and a 1U rack mount option. It has seven Gigabit ethernet ports, one combo Gigabit ethernet or SFP port, a serial console port, and a USB port.

The CCR1009-7G-1C-PC has its 1GB of of DDR3 800MHz RAM soldered directly to the motherboard. (Cannot be expanded.)

New generation CPU

9 core CPU
1.2GHz clock per core
12 Mbytes total on-chip cache
State of the art TILE GX architecture

Highest performance

8 mpps standard forwarding
24 mpps fastpath forwarding (wire speed for all ports)
Up to 8Gbit/s throughput

Full set of features

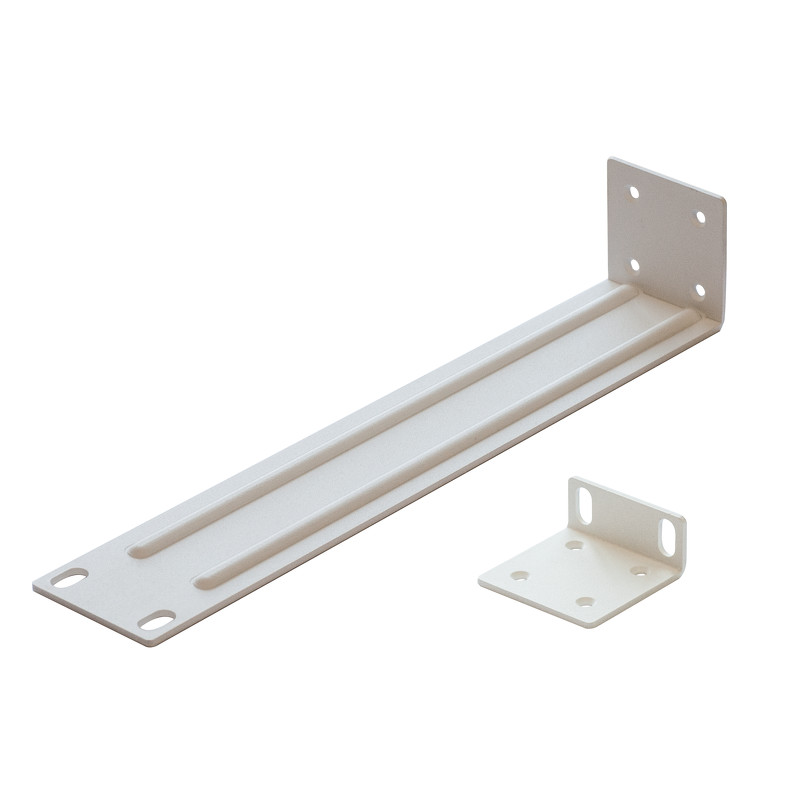

Desktop case with 1U rackmount option
8x Gigabit ports
or 7x Gigabit ports with 1 SFP port
Ports directly connected to CPU

SKU CCR1009-7G-1C-PC

Weight 7.00 lbs

Documentation (PDF) Brochure

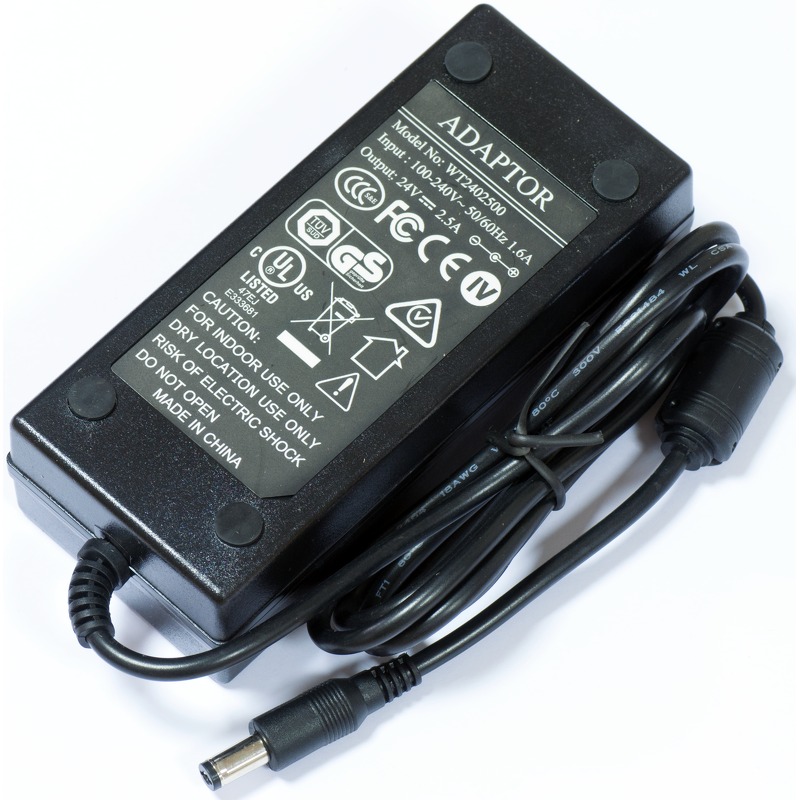

Power Cord

Our price: $434.00

Market price: $465.00

Quantity	Price
2-4 Items	$430.00
5+ Items	$425.00

Quantity (8 available)
