Mikrotik CCR2004-1G-12S+2XS is the Connectivity Router - your best companion when it comes to SFP, SFP+ and SFP28 management! - New!

Mikrotik CCR2004-1G-12S+2XS is the Connectivity Router - your best companion when it comes to SFP, SFP+ and SFP28 management! - New!

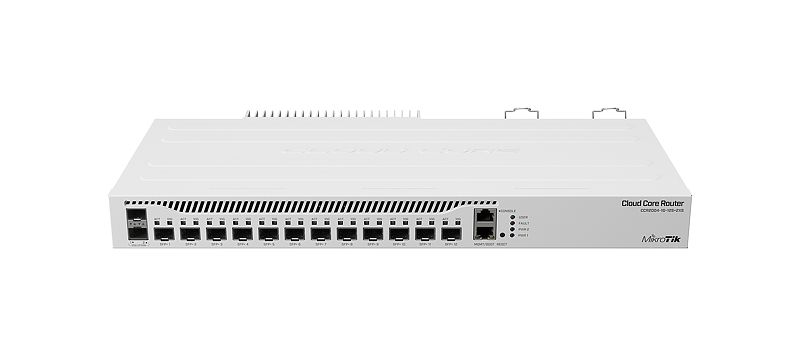

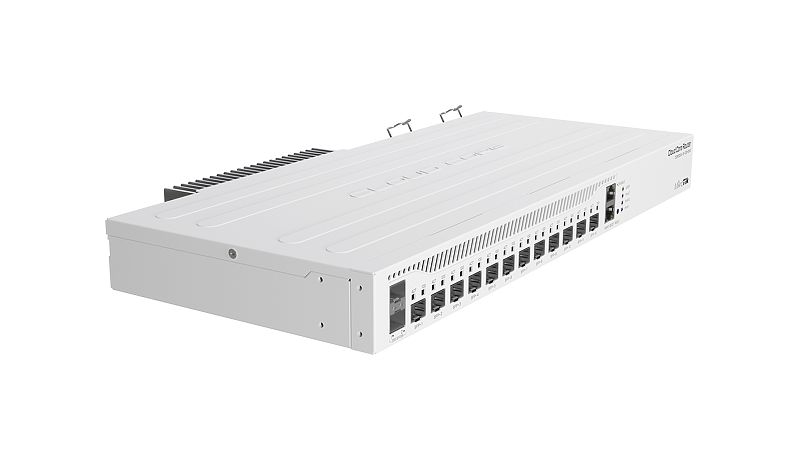

Mikrotik CCR2004-1G-12S+2XS is the Connectivity Router - your best companion when it comes to SFP, SFP+ and SFP28 management! 1, 10 and 25 Gbps ports in a single device to make your life easier.

The “Improvise. Adapt. Overcome.” mindset can be very helpful, but sometimes you simply need a device that works and solves the problem without additional tinkering. The CCR2004-1G-12S+2XS does just that – forget about all connectivity troubles and expand your setup in any way you please. This handy router features 12 x 10G SFP+ and 2 x 25G SFP28 ports.

CCR2004-1G-12S+2XS is our router with the most powerful single-core performance so far. It provides incredible results in single tunnel (up to 3.4 Gbps) and BGP feed processing.

Be prepared for anything: 10G, 40G and now 25G! Paired with such MikroTik multiport products as CRS317-1G-16S+RM, CRS312-4C+8XG-RM and CRS326-24S+2Q+RM, your networking setup will know no bounds. Performance-wise, CCR2004-1G-12S+2XS is on par with the renowned CCR1009/CCR1016 routers. And with dual redundant power supply you can forget about unexpected downtime! With its elaborate port configuration, the new CCR2004-1G-12S+2XS is the perfect addition to any professional networking arsenal – it will save you tons of time in some tricky situations!

Size of RAM in RouterOS v6 1792MB ECC / RouterOS v7 4GB ECC

New generation ARM CPU

  •  4 core CPU
  •  1.7GHz clock per core
  •  4GB of ECC RAM (Router OS 7 required for full use)
  •  State of the art AL32400 ARM64 architecture


Highest performance

  •  8 mpps standard forwarding
  •  24 mpps fastpath forwarding (wire speed for all ports)
  •  Up to16Gbit/s throughput


Full set of features

  •  1U rackmount case

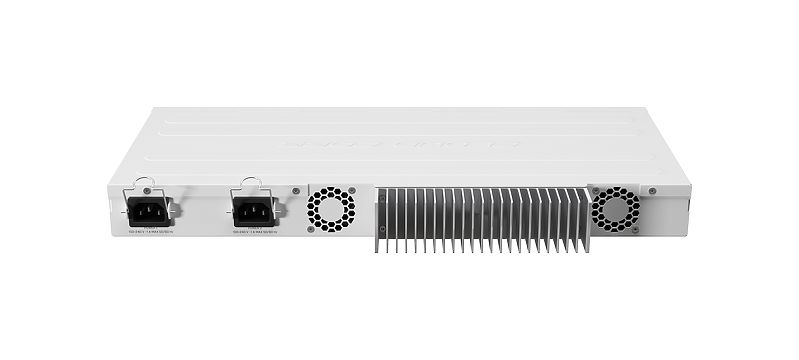

  •  Dual power supplies with Failover
  •  1x 1Gbps Ethernet port
  •  1x RJ45 serial management port
  •  12x 10G SFP+ ports
  •  2x 25G SFP28 ports

NOTE: The enhanced small form-factor pluggable (SFP+) is an enhanced version of the SFP and supports data rates up to 10 Gbit/s.

SKU CCR2004-1G-12S+2XS
Weight 8.00 lbs
Documentation (PDF) Brochure
Data Sheet (PDF) Quick Guide
Power Supplies

Our price: $595.00
5%
Market price: $629.00
Quantity Price
2-4 Items $579.00
5+ Items $559.00
*Note:
Quantity (10 available)
: *
: *
: *
