Assembled Outdoor Radio - ARC Wireless 3.65GHz 20dBi antenna, LED window, Mikrotik RouterBoard, xr3-3.7 radio, and POE supply

Assembled Outdoor Radio - ARC Wireless 3.65GHz 20dBi antenna, LED window, ECS Ethernet Connector System, Mikrotik RouterBoard, Ubiquiti xr3-3.7 radio, and POE supply.

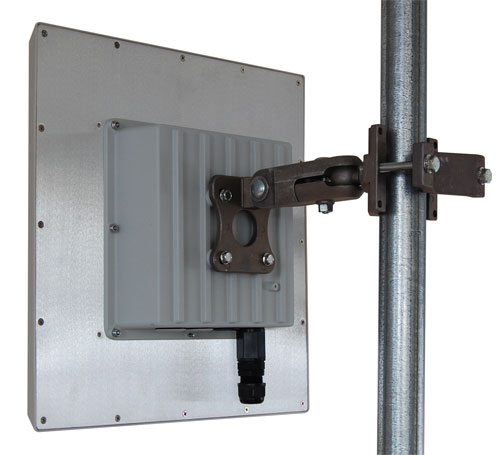

This high quality outdoor radio system is ready to install as a customer CPE, an Access Point (requires RB/411A or RB/411AH), or in a Point to Point configuration (requires two units). The enclosure is die cast aluminum. The RouterBoard is securely mounted and grounded. A viewing window shows RouterBoard LED illumination. The mount is heavy duty, high quality alloy and fully articulating in all axis.

This is an FCC licensed radio system in the USA. Follow this link, for the FCC 3.65GHz Licensing Info and Walk Through.

Channel Freq Driver Freq Real Channel Width Support
------------------------------------------------------------
ChannelA 5765MHz 3658MHz 5/10MHz
ChannelB 5770MHz 3663MHz 20/10/5MHz
ChannelC 5775MHz 3668MHz 5/10MHz

Select RouterBoard and Power Supply options below. Select Antenna Polarity as you want it shipped. Polarity can be changed later by removing eight nuts and rotating the antenna panel.

Note: These are built to order and require some assembly time for completion. We might not be able to ship your order same day. Please call ahead if next day delivery is required.

Mikrotik's Wireless FAQ can be found here.

SKU RN-ARC3520W-411

Weight 10.00 lbs

Antenna Polarity

RouterBoard

Power Supply

Radio Card

Our price: $375.00

24%

Market price: $495.00

Quantity (10 available)
