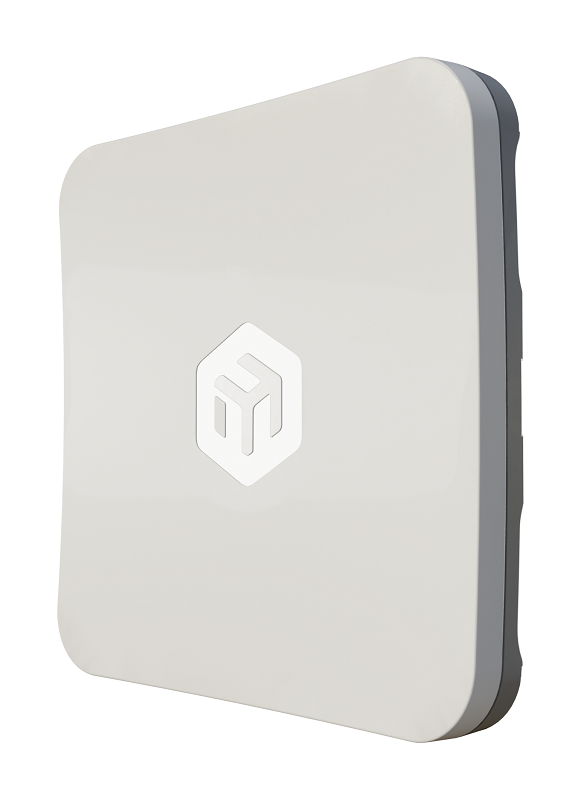

| Meet the Mikrotik SXTsq 5 ax our first Wi-Fi 6 outdoor CPE, combining the best wireless technology with our trusted, compact SXTsq form factor. A compact outdoor Wi-Fi 6 CPE with a powerful 16 dBi antenna, AP mode, and multiple mounting options perfect for masts, poles, or rooftop deployments.
64bit ARM dual-core + Wi-Fi 6:
Despite the upgrade to Wi-Fi 6 and a modern ARM-based dual-core CPU, this unit keeps the same price point as our previous Wi-Fi 5 model making it one of the best-value weatherproof CPEs on the market.
Weatherproof:
The enclosure can withstand all sorts of unpredictable weather hazards, and it features slots for directly attaching a hose clamp in three different mounting positions, including support for horizontal railings ideal for masts and poles in rooftop or tower deployments.
3 to 10+ km:
Field-tested up to 3 km in high-interference, urban scenarios. Designed with the same trusted long-range architecture as previous SXT models capable of 10+ km links in line-of-sight deployments.
Pair a mANTBox ax 15s as your uplink with several SXTsq 5 ax units - and you've got everything you need to become the village ISP! No need to wait for large ISPs to reach you.
With RouterOS license level 4, the SXTsq 5 ax isnt just a client it can also be configured as a powerful access point, giving you more flexibility in planning your wireless infrastructure. And thanks to its compact square shape, it fits neatly into even the most space-sensitive deployments.
NOTE: The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
- SXTsq 5 ax-US (USA) is factory locked for 5170-5835MHz frequencies. This lock can not be removed.
- SXTsq 5 ax (International) supports 5170-5875MHz range (Specific frequency range can be limited by country regulations).
- ARM 64bit CPU Dual-Core IPQ-5010 800 MHz with 256MB RAM
- Onboard voltage and temperature monitors
- extended temperature range -40C to +70C
- Dual chain 5GHz 802.11ac IPQ-4018 (ARM) wireless module
- ESD protection +/- 10kV on RF ports
- 20/40/80MHz supported channel widths
- 316mW RF output (25dBm)
- Dual pol. 25deg, 5GHz antenna, 16dBi, -35 dB port to port isolation
- 1 Gigabit 10/100/1000 Ethernet port
- Passive Power over Ethernet: 12-28V DC
- MikroTik RouterOS, Level 4 license
- FCC, CE, ROHS Certifications
- up to 750Mbps data throughput 1200Mbps radio throughput)
- low latency Point to Point
|
