Key Features:
-
2x14 dBi Sectoral Gain
-
Dual Polarization H&V in One Case
-
Integrated enclosure
-
Special Outdoor Weatherproof Enclosure
Dedicated for Mikrotik RouterBOARDs
-
High Quality Construction
-
Horizontal or Vertical Polarization
-

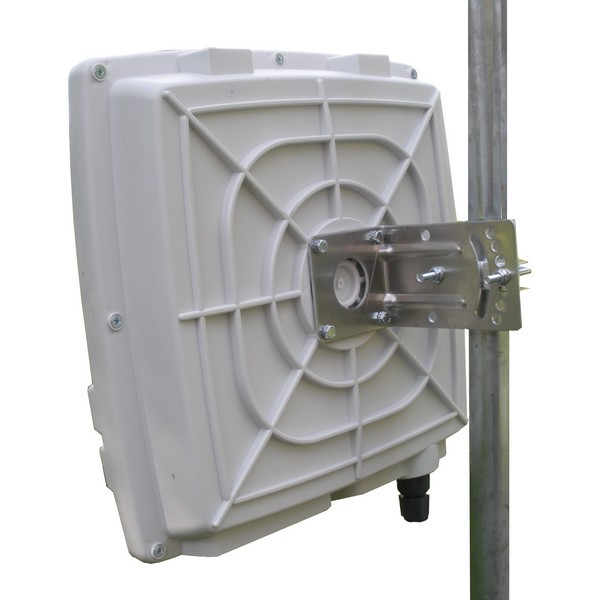

Heavy-Duty Mounting Elements
-
Easy Elevation and Tilt Adjustment
-
5 Years Warranty
-
Designed for All Weather Operation
|
Applications:
-
2.4 GHz Band Wireless LAN
-
IEEE 802.11b/g WLAN Systems
-
Point to Point Application
-
RLAN
-
FWA
-
WiMAX
|

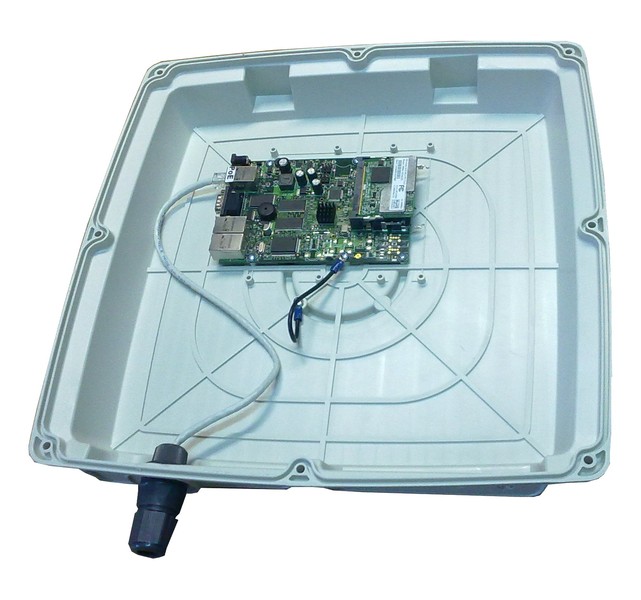

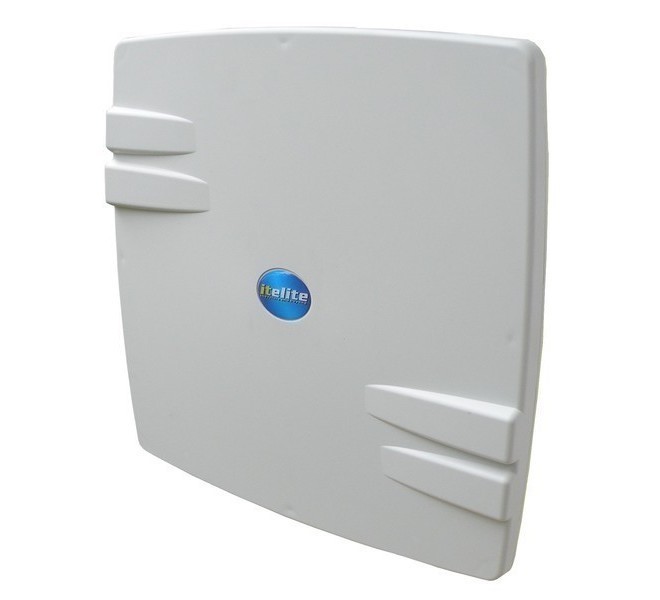

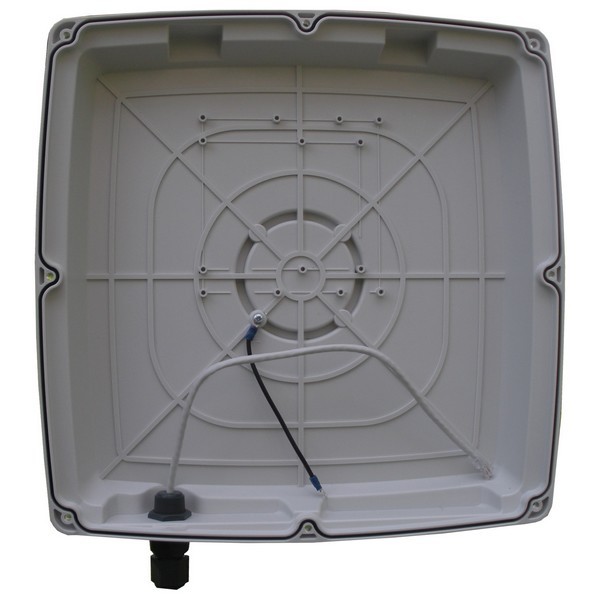

SRA-SE24014dual_H&V is an integrated enclosure antenna working in the 2.4 GHz band with 19 dBi gain that can be mounted for horizontal or vertical polarization. This product includes a weatherproof outdoor enclosure with panel antenna and enough interior space for a Mikrotik RouterBoard or other electronic equipment. Also included is a special RJ-45 waterproof ethernet connector system. Designed for operation under severe weather conditions including salt water environment without corrosion. High quality construction of pole mounting elements guarantee easy elevation and easy tilt down as well as rock-stable operation. It can be used as customer premise equipment and also as a small base station. Inside the enclosure are suitable mounting posts for Mikrotik RouterBoard 411, 711 and 433 series boards.
|
Electrical Properties |
|
Frequency |
2.4 - 2.5 GHz |
|
Gain |
19dBi |
|
Polarization |
horizontal or vertical |
|
Beamwidth deg horizontal |
20° |
|
Beamwidth deg vertical |
20° |
|
VSWR |
<1.8 |
|
Impedance |
50 ohm |
|
Front to back ratio |
> 35 dB |
|
Lightning protection: |
DC ground |
|
Enclosure Properties |
|
Technology: |
Microstrip |
|
Material: |
UV protected |
|
Colour: |
Grey |
|
Min temperature: |
-40°C / -40°F |
|
Max temperature: |
80°C / 176°F |
|
Mechanical Properties |
|
Compatible with: |
RB411, RB711 and RB433 series |
|
Input Connector |
MMCX pigtail (or U.Fl optional) |
|
Enclosure Connector |

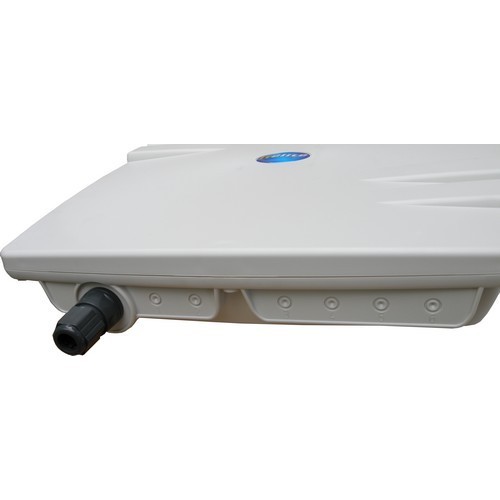

Waterproof Ethernet Connector RJ45 (or cable gland optional) |
|
Outside Dimensions |
385x385x80mm / 15.2x15.2x3.3" |
|
Weight |
2.4kg / 5.31lbs |
Specification subject to change without notice.
Plots:
