Home :: Mikrotik Switches :: Mikrotik Cloud Router Switch CRS326-24S+2Q+RM SFP switch, 24 - 10 Gpbs SFP+ ports with 2 - 40 Gpbs QSFP+ ports in a 1U rack mount case - New!

Mikrotik Cloud Router Switch CRS326-24S+2Q+RM SFP switch, 24 - 10 Gpbs SFP+ ports with 2 - 40 Gpbs QSFP+ ports in a 1U rack mount case - New!

Mikrotik Cloud Router Switch CRS326-24S+2Q+RM SFP switch, 24 - 10 Gpbs SFP+ ports with 2 - 40 Gpbs QSFP+ ports in a 1U rack mount case - New!

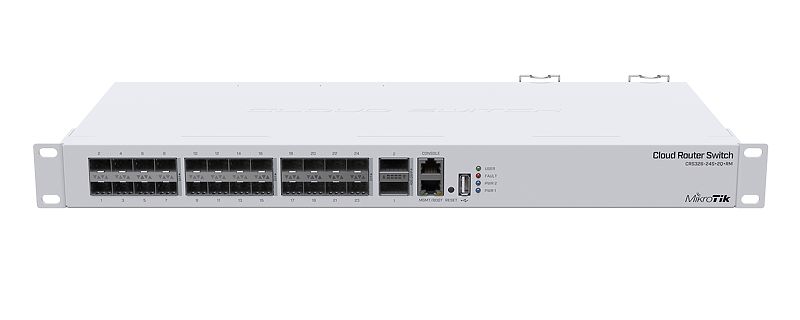

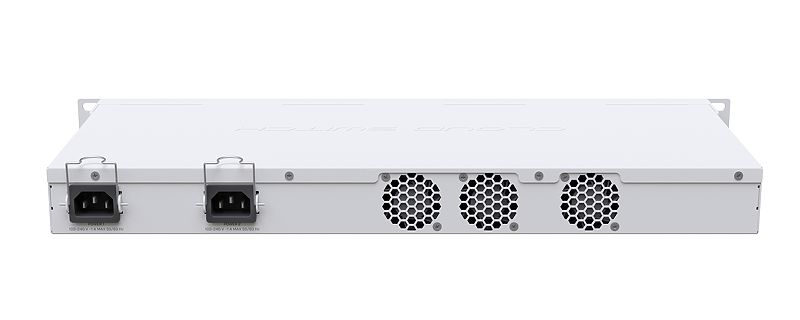

Mikrotik CRS326-24S+2Q+RM front Mikrotik CRS326-24S+2Q+RM rear
If you are working with a substantial amount of data – like providing Internet access or maintaining a huge data center – this is the perfect upgrade for your setup. CRS326-24S+2Q+RM is our first product with 40 Gbps QSFP+ ports for remarkably fast and stable fiber connection.

Overall it has two 40 Gbps QSFP+ ports and twenty four 10 Gbps SFP+ ports, which provides total non-blocking throughput of 320 Gbps and switching capacity of 640 Gbps with forwarding rate of 252 Mpps with most common packets.

CRS326-24S+2Q+RM is easy to manage – it has a full size USB port for configuration and dual power supplies for redundancy – no unexpected downtime, your clients and colleagues will be thankful!

You can choose between our legendary feature-packed RouterOS for booting or a simpler, but still powerful SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS

Quick Specifications:

  • 24 - 10 Gbps SFP+ ports
  • 2 - 40Gpbs QSFP+ ports
  • RJ45 10/100 management port
  • Non-Blocking throughput: 320 Gbps
  • Switching capacity: 640 Gbps
  • Forwarding rate: 252 Mpps
  • Maximum power consumption: 67 W
  • Tested ambient temperature -20°C to 60°C
  • Temperature based fan control
  • 1U rackmount

Level 5 RouterOS license included.

SKU CRS326-24S+2Q+RM
Weight 15.50 lbs
Documentation (PDF) Brochure
Data Sheet (PDF) Quick Guide

Our price: $499.00
9%
Market price: $549.00
Quantity Price
2-3 Items $489.00
4+ Items $479.00
