R11e-5HacD Mikrotik 802.11ac High Power Dual Chain MiniPCIe card - 500mw output Atheros QCA9882 chipset -New!

R11e-5HacD Mikrotik 802.11ac High Power Dual Chain MiniPCIe card - 500mw output Atheros QCA9882 chipset -New!
R11e-5HacD Hi-Res

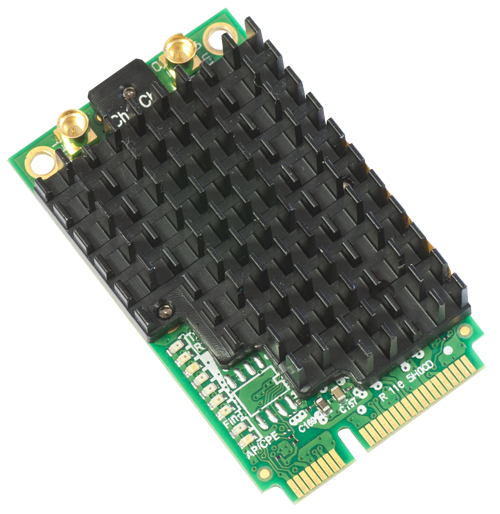

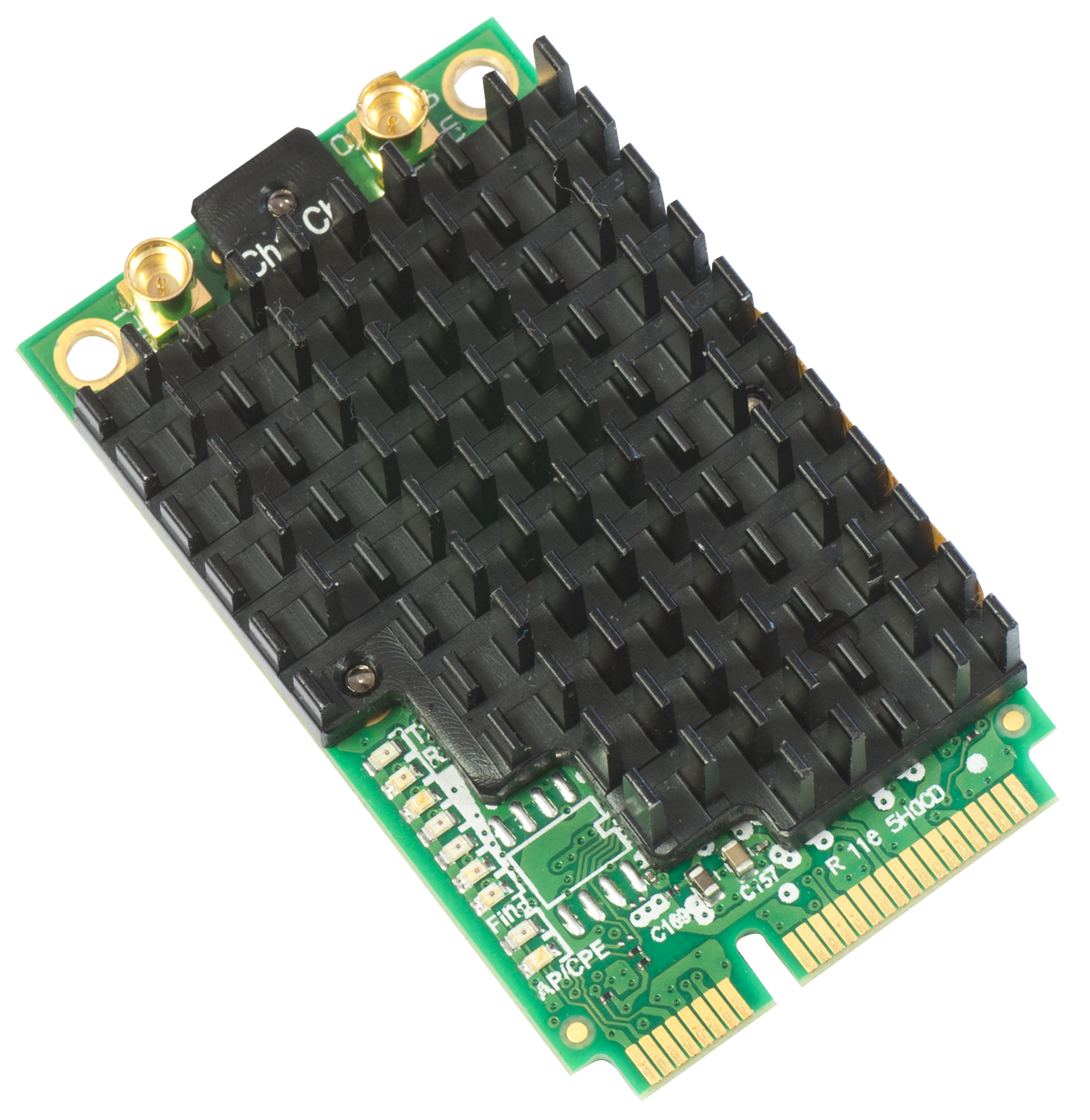

Mikrotik R11e-5HacD

The new AC standard is here, with up to 866Mbit datarate and 256-QAM modulation and 80MHz channels. 802.11ac opens up new possibilities and speeds never possible before.

R11e-5HacD is our new 802.11ac card in miniPCIe format, perfect for any RoutrBOARD with miniPCIe slot, such as RB953, RB912, RB800 or x86 devices with RouterOS.

The card features built-in LED indicators for wireless mode, connection status (connected, searching, disabled), TX and RX activity and wireless signal strength - just looking at the card will help with installation and alignment.

Add a second radio to Mikrotiik RouterBoard models RB912UAG-5HPnD or RB912UAG-2HPnD. Add up to 4 radios in a PC with Mikrotik RouterBoard RB44Ge.



  • 4920-6100MHz miniPCI-e IEEE 802.11a/n standard
  • Output Power of up to 27dBm
  • Support for up to 2x2 MIMO with spatial multiplexing
  • Atheros QCA9882, chipset
  • High Performance (up to 866Mbps physical data rates and 540Mbps of actual user throughput) with Low Power Consumption
  • Two MMCX Antenna Connectors
  • Modulations: OFDM: BPSK, QPSK, 16 QAM, 64QAM, 256QAM DSSS: DBPSK, DQPSK, CCK
  • Operating temperatures: -30ºC to +65ºC
  • Max power consumption 4.5W
  • ESD protection +/- 12kV on RF ports



SKU R11e-5HacD
Weight 0.10 lbs
Documentation (PDF) Brochure


Our price: $49.00
17%
Market price: $59.00
Quantity Price
10-19 Items $48.00
20-49 Items $46.00
50-99 Items $45.00
100+ Items $44.00
