Mikrotik CCR2216-1G-12XS-2XQ with 16 cores running at 2.0 GHz, 16Gb of DDR4 RAM! - New!

Mikrotik CCR2216-1G-12XS-2XQ with 16 cores running at 2.0 GHz, 16Gb of DDR4 RAM! - New!

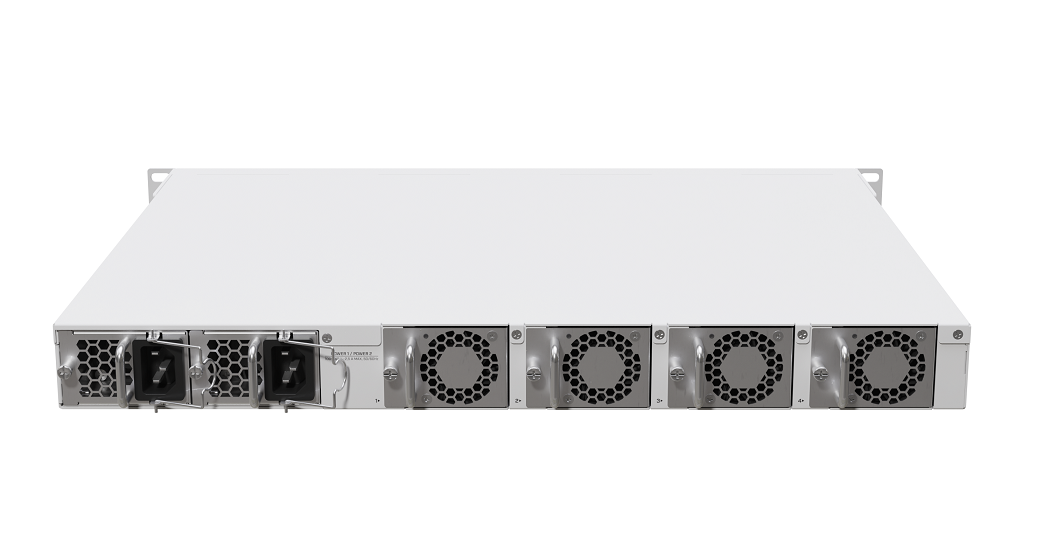

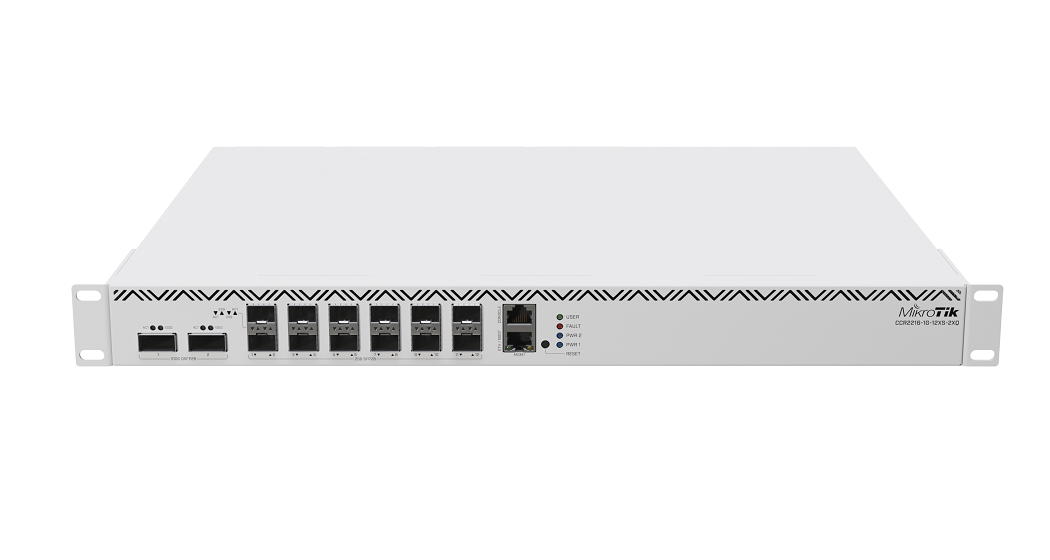

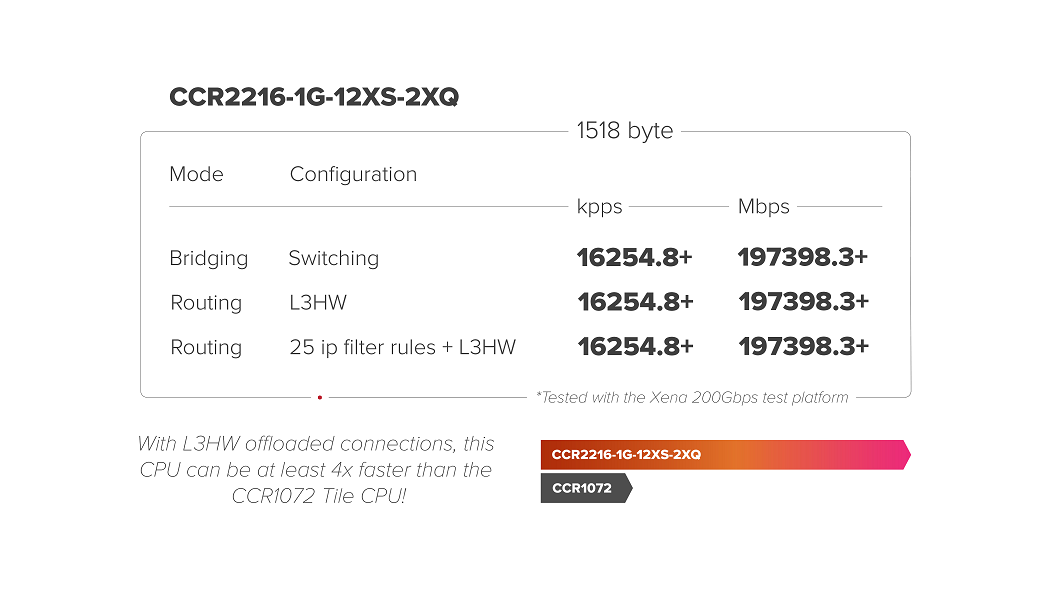

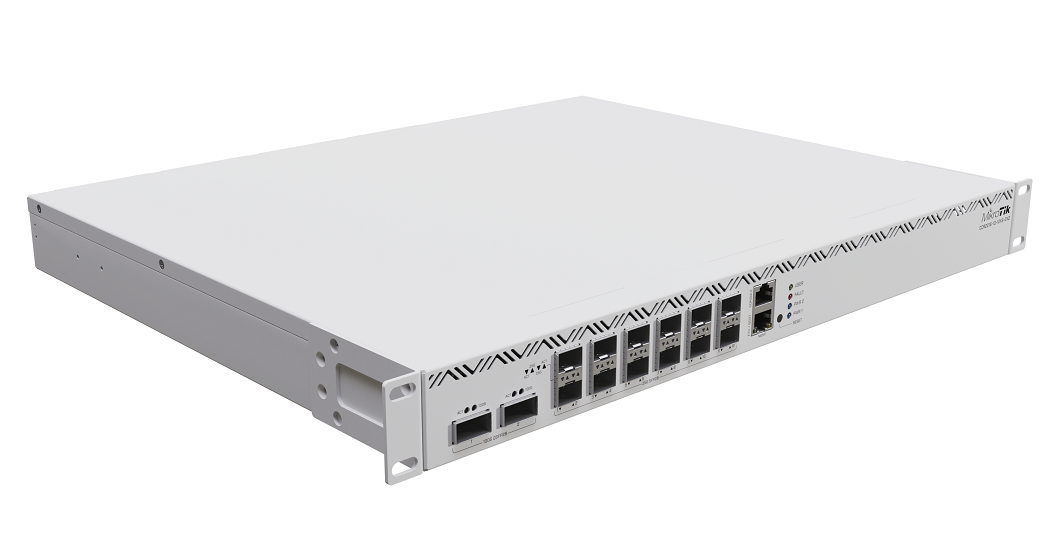

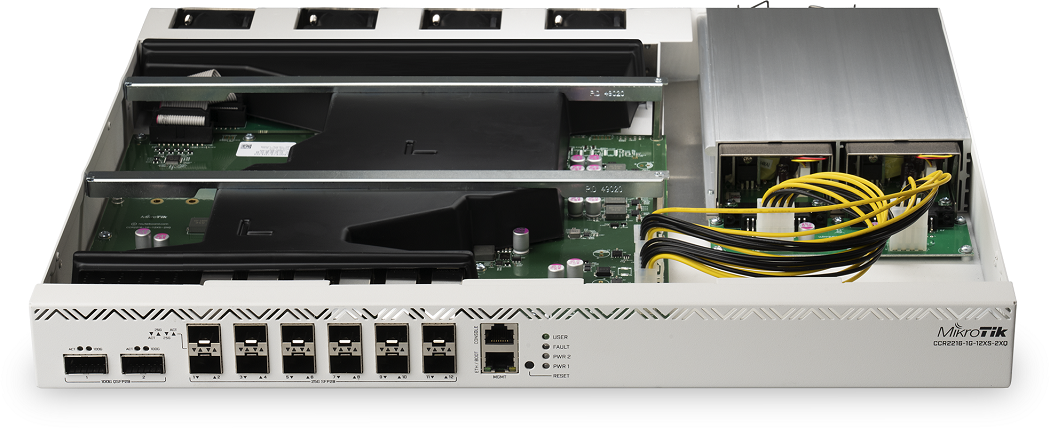

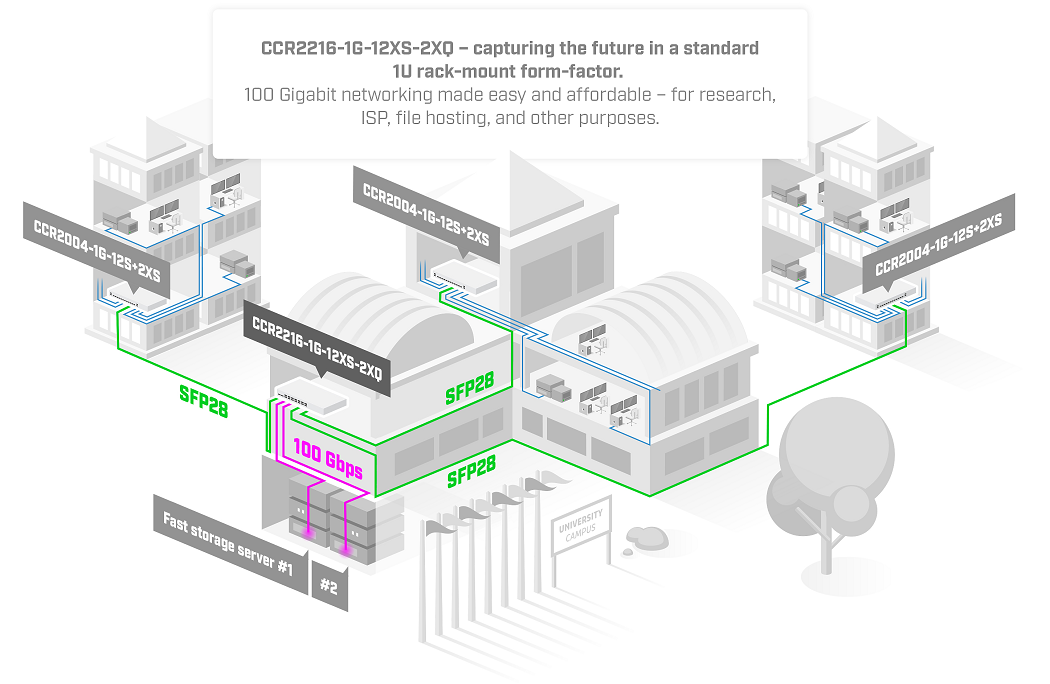

Mikrotiik CCR2216-1G-12XS-2XQ left Mikrotiik CCR2216-1G-12XS-2XQ front Mikrotiik CCR2216-1G-12XS-2XQ back Mikrotiik CCR2216-1G-12XS-2XQ inside Mikrotiik CCR2216-1G-12XS-2XQ performance Mikrotiik CCR2216-1G-12XS-2XQ on campus
Start your 100 Gigabit journey with our new flagship product: the Cloud Core Router 2216! Its powerful 16-core CPU can trade blows with the mighty 72-core Tile CPU of our previous flagship - the CCR1072.

But the exceptional Marvell Prestera Aldrin2 switch-chip really takes it to the next level with L3 Hardware Offloading! Our previous CCR2116 featured a switch-chip with four 10G CPU connection lines, but this time there are four 25G lines!

There are 2x QSFP28 cages for blazing-fast 100 Gigabit connectivity, 12x SFP28 cages for 25 Gigabit networking, and a Gigabit Ethernet port. The device comes with 16 GB of RAM, decent NAND storage, and two M.2 SATA slots for additional storage. There are four hot-swappable fans, as well as dual-redundant hot-swap power supplies. And these PSUs might look familiar if you have used our CCR1072 before: you can keep using your previous hot-swap power supplies and SFP modules.

You’re saving time and money on accessories, while also getting better performance with lower power consumption.. This is the perfect drop-in upgrade for existing CCR1072 setups!

New generation ARM CPU

  •  AL73400 ARM 64bit - 16 core CPU
  •  2.0GHz clock per core
  •  16GB of DDR4 RAM (Router OS 7 required for full use)


Highest performance

  •  wire speed for all ports
  •  Over 100Gbit/s throughput


Full set of features

  •  1U rackmount case
  •  Dual Hot Swap power supplies with Failover
  •  48v DC power supplies option
  •  1x 1Gbps Ethernet ports
  •  12x 25G SFP28 ports
  •  2x 100G QSFP28 ports
  •  1x RJ45 serial management port
  •  2x M.2 slots
SKU CCR2216-1G-12XS-2XQ
Weight 12.00 lbs
Documentation (PDF) Brochure
Power Supplies

Our price: $2695.00
10%
Market price: $2995.00
Quantity Price
2+ Items $2645.00
*Note:
Quantity (4 available)
: *
: *
: *
