MikroTik LoRa 900MHz 6.5dBi Antenna Kit - 868 Omni antenna - New!

MikroTik LoRa 900MHz 6.5dBi Antenna Kit - 868 Omni antenna - New!

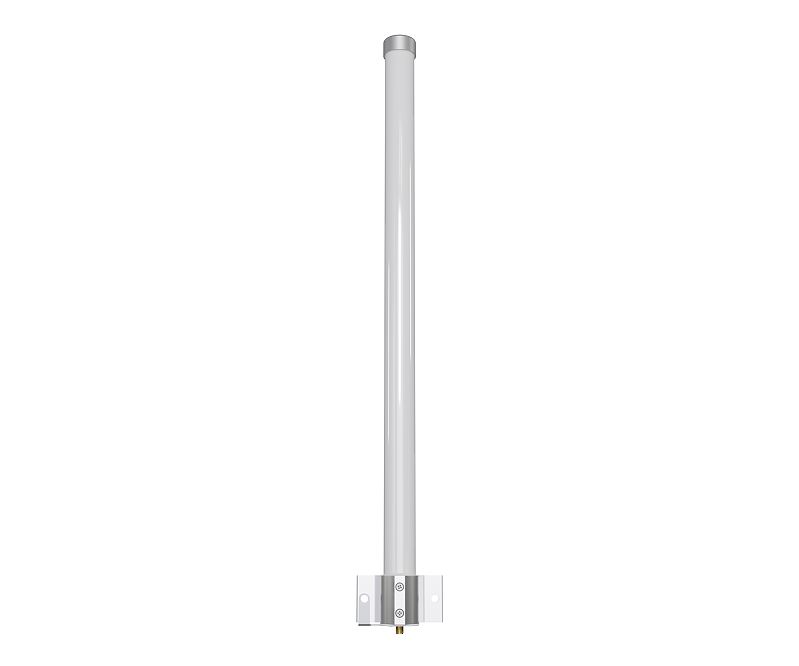

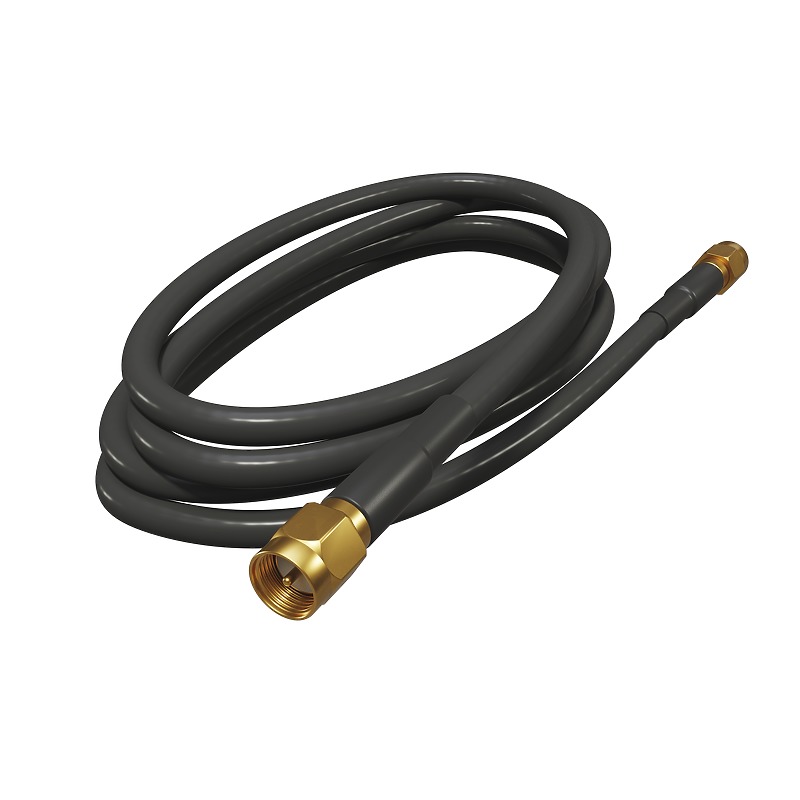

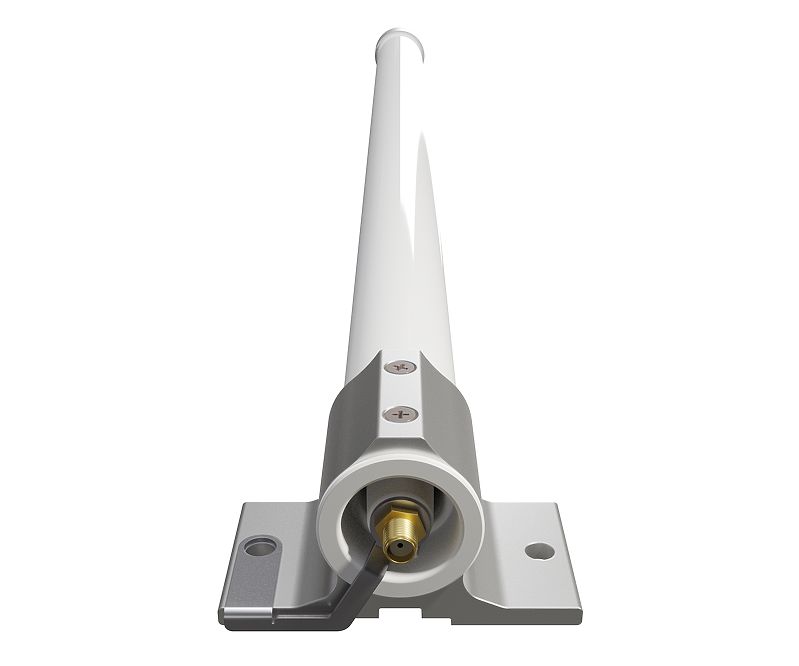

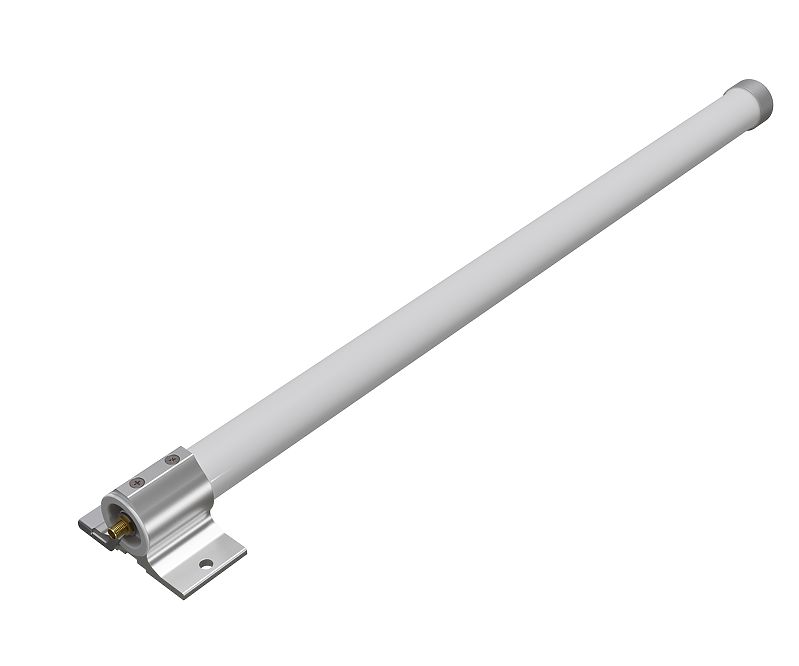

MikroTik RouterBoard's ANT-LORA is a 6.5 dBi Omni-Antenna for the 824-960 MHz frequency. This device includes a 1m SMA cable and a mechanical holder for quick and easy attachment when you need extra coverage.

Specifications:

  • Product code: 868_Omni_antenna
  • Frequency: 824-960 MHz
  • Gain: 6.5 dBi
  • Horizontal beamwidth: 360°
  • Vertical beamwidth: 30°
  • Nominal impedance: 50 Ω
  • Lightning protection: DC ground
  • Water resistance: IP66
  • Connector: SMA female
  • SMA Cable length: 39 in (1 M)
  • Weight: 12.4 oz (0.6 kg)
  • Radome diameter: 1 in (26 mm)
  • Dimensions: Ø 1.65 in x 2.625 in x 19 in (Ø 42 x 68 x 495 mm)
  • Mast mounting diameter: 1 - 2 in ( 25 - 50 mm)
SKU 868_Omni_antenna
Weight 2.00 lbs
Documentation (PDF) Brochure

Our price: $49.00
11%
Market price: $55.00
Quantity Price
10-19 Items $48.00
20+ Items $47.00
