MikroTik HGO-LTE-W LoRa/LTE antenna for KNOT

MikroTik HGO-LTE-W LoRa/LTE antenna for KNOT

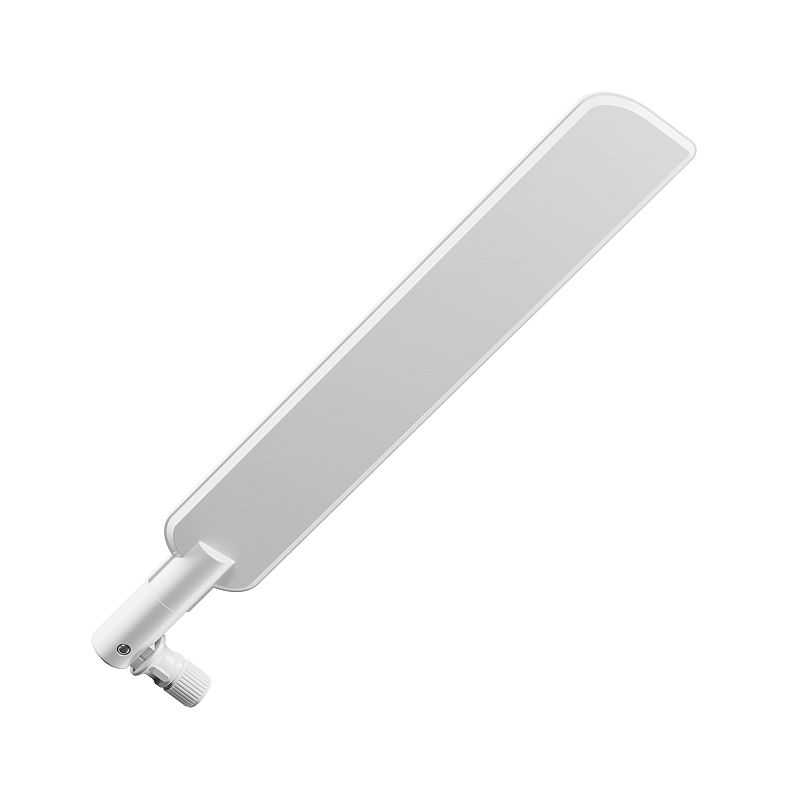

HGO-LTE-W Indoor antenna

Mikrotik HGO-LTE-W - HGO-LTE-antenna W (wideband) This antenna will transmit whichever signal your modem provides. For example, if you are using our KNOT LR8/LR9 kit, you can use this powerful 1.5 – 4 dBi antenna to communicate with all your 900 MHz devices and then send the data to the cloud via LTE.

No need to buy several antennas for your Internet-of-things setups – just grab the new HGO-LTE-W antenna that can handle an impressive frequency spectrum: 699MHz – 3,8GHz.

That’s right – you can use the same antenna for LTE, CAT-M/NB and LoRa® connectivity..

Specifications:

  • Product code: HGO-LTE-W
  • Application type: Indoor
  • Frequency: 699-3800 MHz
  • Gain: 800-900MHz - 1.5dBi; 1800-1900MHz - 1.5dBi; 2.4GHz - 3.6dBi; 2.6GHz - 4dBi
  • Horizontal beamwidth: 360°
  • Vertical beamwidth: 30°
  • Nominal impedance: 50 Ω
  • Connector: SMA male
  • Weight: 0.1 kg
  • Dimensions: Ø 13.2 x 30.3 x 215.3 mm
SKU HGO-LTE-W
Weight 0.50 lbs
Documentation (PDF) Brochure

Our price: $10.00
33%
Market price: $15.00
Quantity Price
10-19 Items $9.50
20+ Items $9.00
