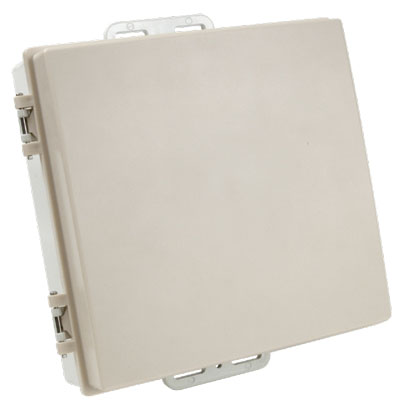

DCE10i-985 HD RooTenna® DCE-10x10x2 enclosure with integrated 900-928MHz 8dBi panel antenna

HD RooTenna® Enclosure offers 900 to 5850 MHz Operation options The HD RooTenna® from Laird Technologies is an innovative antenna system which gives the operator ultimate system flexibility. The die-cast enclosure is available as a stand-alone enclosure, with an integrated low-gain antenna or with a detachable high-gain panel antenna. Antennas are wide band for spectral flexibility.

Radomes are UV resistant ASA plastic. Hardware is stainless steel. The antenna systems come with a pigtail cable with choice of connectors to adapt to any available radio equipment. There is a removable and customizable user mounting plate inside for mounting electronics. The antenna models come standard with Laird Technologies patented RJ45-ECS field replaceable ethernet connector feedthru.

The die-cast enclosure can be pole or wall mounted. A heavy duty tilt bracket is available for those installations requiring up or downtilt. Eleven (11) engineered knockouts are provided; 9 sized for N connectors and 2 sized for a cable feedthru.

Select the proper pigtail to match your radio. (Pigtail is a coaxial cable the connects the antenna element to the radio card.)
