R11e-5HacT Mikrotik 802.11ac High Power Triple Chain MiniPCIe card - 630mw output Atheros QCA9880 chipset -New!

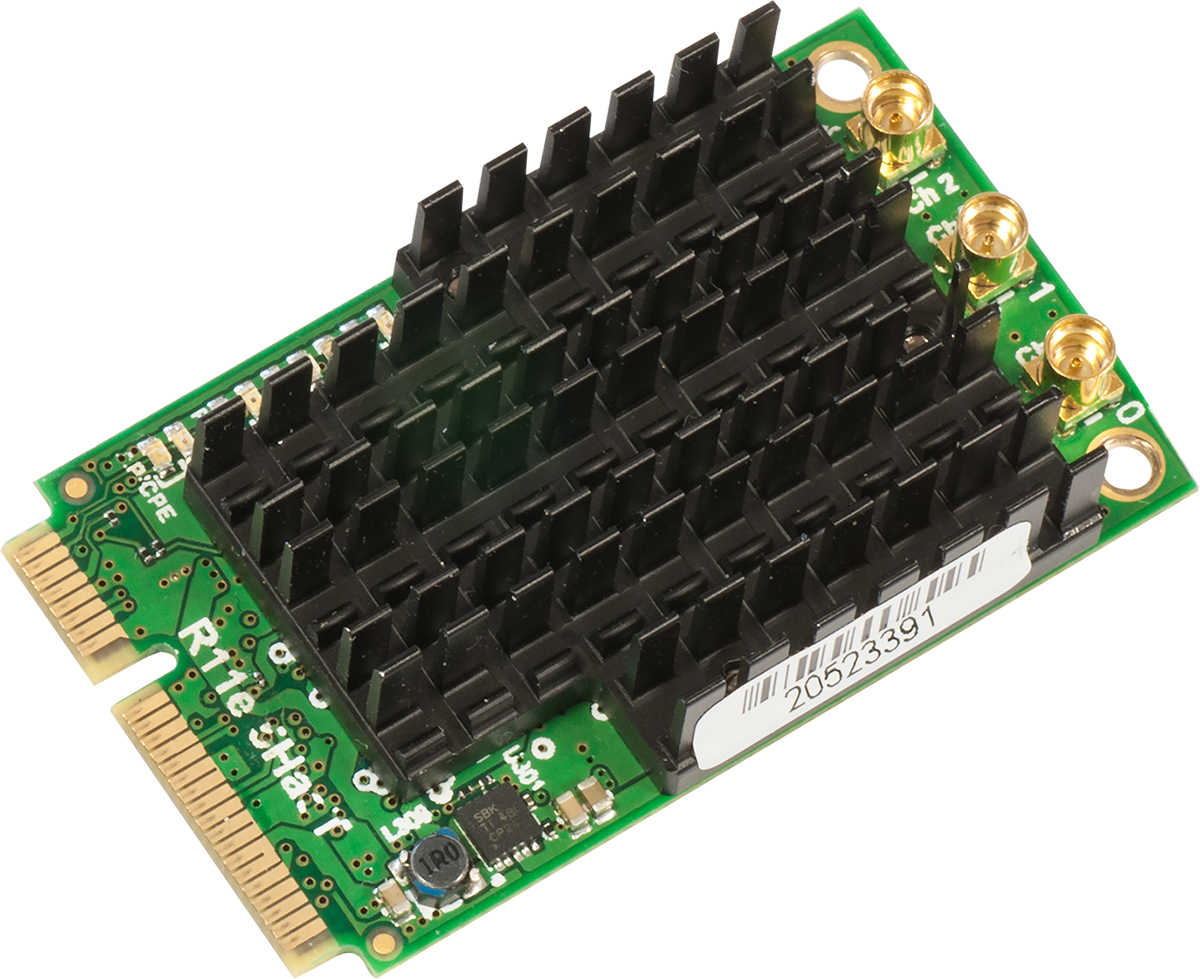

Mikrotik R11e-5HacT

The new AC standard is here, with up to 1.3Gbit datarate and 256-QAM modulation and 80MHz channels. 802.11ac opens up new possibilities and speeds never possible before.

R11e-5HacT is our new 802.11ac card in miniPCIe format, perfect for any RoutrBOARD with miniPCIe slot, such as RB953, RB912, RB800 or x86 devices with RouterOS.

The card features built-in LED indicators for wireless mode, connection status (connected, searching, disabled), TX and RX activity and wireless signal strength - just looking at the card will help with installation and alignment.

Add a second radio to Mikrotiik RouterBoard models RB912UAG-5HPnD or RB912UAG-2HPnD. Add up to 4 radios in a PC with Mikrotik RouterBoard RB44Ge.

4920-6100MHz miniPCI-e IEEE 802.11a/n standard
Output Power of up to 28dBm
Support for up to 3x3:3 MIMO with spatial multiplexing
Atheros QCA9880, chipset
High Performance (up to 1.3Gbps physical data rates and 810Mbps of actual user throughput) with Low Power Consumption
Three MMCX Antenna Connectors
Modulations: OFDM: BPSK, QPSK, 16 QAM, 64QAM, 256QAM DSSS: DBPSK, DQPSK, CCK
Operating temperatures: -30ºC to +65ºC
Max power consumption 5W
ESD protection +/- 12kV on RF ports

SKU R11e-5HacT

Weight 0.10 lbs

Documentation (PDF) Brochure

Our price: $59.00

14%

Market price: $69.00

Quantity	Price
10-19 Items	$58.00
20-49 Items	$56.00
50-99 Items	$55.00
100+ Items	$54.00
