Key Features:
-
15 dBi Sectorial Gain
-
Special Outdoor Weatherproof Enclosure
Dedicated for Mikrotik RouterBOARDs
-
High Quality Construction
-
Horizontal Polarization
-
Heavy-Duty Mounting Elements
-
Easy Elevation and Tilt Adjustment
-
5 Years Warranty
-
Designed for All Weather Operation
|
Applications:
-
2.4 GHz Band Wireless LAN
-
IEEE 802.11b/g WLAN Systems
-
Point to MultiPoint Applications
|

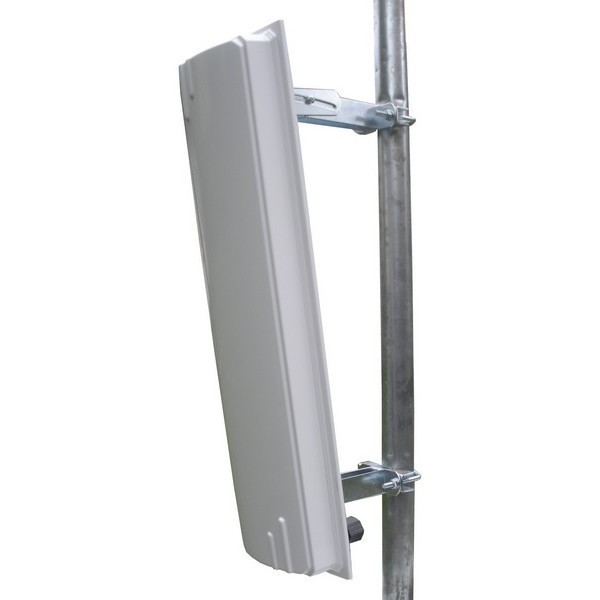

PRO-SECTOR24015H_box is an integrated enclosure antenna working in the 2.4 GHz band with 15 dBi gain horizontal polarization. This product includes a weatherproof outdoor enclosure with panel antenna and enough interior space for a Mikrotik RouterBoard or other electronic equipment. Also included is a special RJ-45 waterproof ethernet connector system. Designed for operation under severe weather conditions including salt water environment without corrosion. Professional mounting system with 0-15 degrees scale guarantees easy and smooth tilt down as well as rock-stable operation. This product is well suited to point to multipoint applications for highly professional solutions. Inside the enclosure are suitable mounting posts for Mikrotik RouterBoard 411, 711 and 433 series boards.
|
Electrical Properties |
|
Frequency |
2.4 GHz |
|
Gain |
15dBi |
|
Polarization |
horizontal |
|
Beamwidth deg horizontal |
90°(-3dB), 120°(-6dB) |
|
Beamwidth deg vertical |
12° |
|
VSWR |
<1.8 |
|
Impedance |
50 ohm |
|
Front to back ratio |
> 35 dB |
|
Lightning protection: |
DC ground |
|
Enclosure Properties |
|
Technology: |
Microstrip |
|
Material: |
UV protected |
|
Colour: |
Beige |
|
Min temperature: |
-40°C / -40°F |
|
Max temperature: |
80°C / 176°F |
|
Mechanical Properties |
|
Compatible with: |
RB411, RB711 and RB433 series |
|
Input Connector |
MMCX pigtail (or U.Fl optional) |
|
Enclosure Connector |
Waterproof Ethernet Connector RJ45 (or cable gland optional) |
|
Outside Dimensions |
580x150x60mm / 22.8x5.9x2.4" |
|
Weight |
2.1kg / 4.7lbs |
Specification subject to change without notice.
