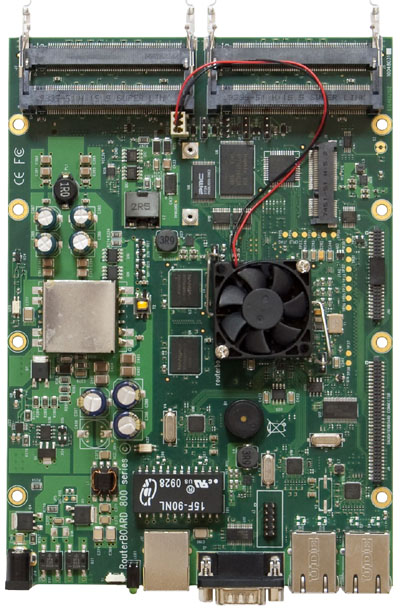

The Mikrotik RouterBOARD 800 is a high performance wireless platform with a Power PC based MPC8544 800MHz Network Processor. Includes 256MB of DDR SDRAM, 512MB NAND flash, 4 miniPCI slots, 1 miniPCI-e,1 CF slot, three 10/100/1000 Mbps gigabit ethernet with auto-mdi/x and an L6 license.
A daughterboard connector supports the RB604 which adds 4 additional mini-pci slots
or the EOL RB564 daughterboard which adds 6 10/100 fast ethernet ports along with 4 additional mini-pci slots.
Supports IEEE 802.3af POE on ether1: 38 to 56vdc on unused pairs (including power over datalines). or 10-56vdc power jack support. Overall dimensions: 200mm x 140mm (7.87in x 5.51in)
NOTE: This is form factor compatible with the RB600 but uses a taller case for fan clearance.
Click here to see this product assembled and complete in an indoor case. |
