R52HnD Mikrotik 802.11a/b/g/n High Power 2x2 MIMO MiniPCI card - 400mw output Atheros chipset - New!

R52HnD Mikrotik 802.11a/b/g/n High Power 2x2 MIMO MiniPCI card - 400mw output Atheros chipset - New!

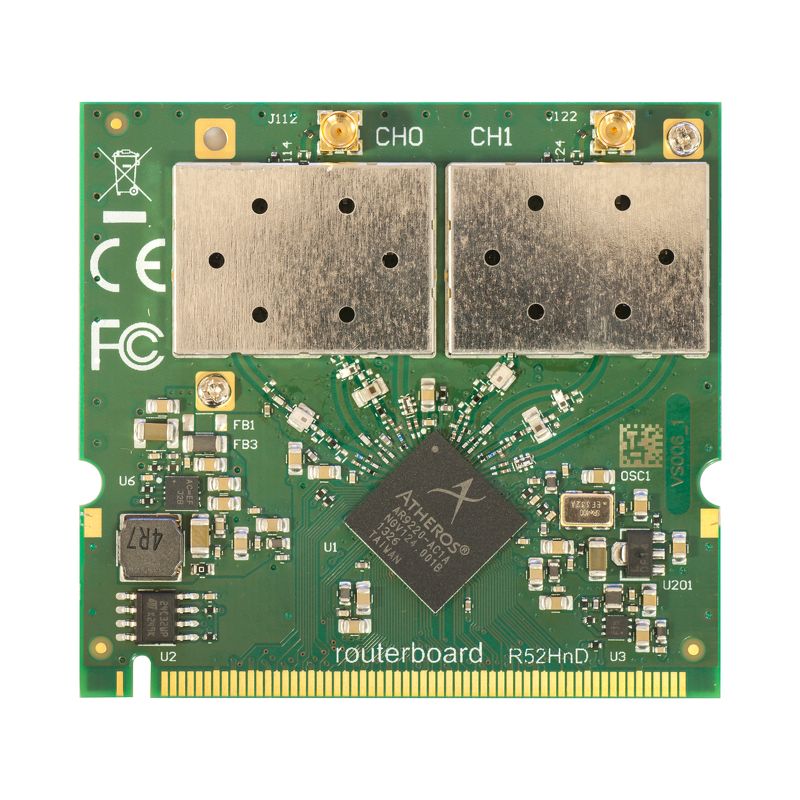

R52HnD
Mikrotik 802.11a/b/g/n High Power MiniPCI card - 400mw output Atheros AR9220 chipset
High power (~400mW with RouterOS) miniPCI wireless card for special applications.

RouterBOARD R52HnD miniPCI network adapter provides leading 802.11a/b/g/n performance in both 2GHz and 5GHz bands, supporting up to 300Mbps physical data rates and up to 200Mbps of actual user throughput on both the uplink and the downlink. 802.11n in your Wireless device provides higher efficiency for everyday activities such as local network file transfers, Internet browsing, and media streaming. R52Hn has a high power transmitter and superior sensitivity, bringing you even more range.

802.11a/b/g/n dual band miniPCI card

  • Dual band IEEE 802.11a/b/g/n standard
  • Output Power of up to 26dBm @ a/g/n Band
  • Support for up to 2x2 MIMO with spatial multiplexing
  • Four times the throughput of 802.11a/g
  • Atheros chipset
  • High Performance (up to 300Mbps physical data rates and 200Mbps of actual user throughput) with Low Power Consumption
  • Two MMCX Antenna Connectors
  • Modulations: OFDM: BPSK, QPSK, 16 QAM, 64QAM DSSS: DBPSK, DQPSK, CCK
  • Operating temperatures: -40ēC to +70ēC
  • Idle power consumption 0.4W
  • Max power consumption 7W
  • MiniPCI IIIA+ design (3mm longer than MiniPCI IIIA)
  • 1.5mm heatsink, 3mm RF shield thickness
  • ESD Protection on RF ports

NOTE: This is the replacement for the Mikrotik R52Hn which was announced EOL in October 2015.

SKU R52HnD
Weight 0.07 lbs
Documentation (PDF) Brochure


Our price: $57.00
17%
Market price: $69.00
Quantity Price
10-19 Items $55.00
20-49 Items $53.00
50-99 Items $51.00
100+ Items $49.00
