Mikrotik Cloud Router Switch CRS112-8P-4S - PoE out switch, 8 PoE out Gigbit Ethernet ports with 4 SFP cages in a desktop case - new!

Mikrotik Cloud Router Switch CRS112-8P-4S - PoE out switch, 8 PoE out Gigbit Ethernet ports with 4 SFP cages in a desktop case - new!

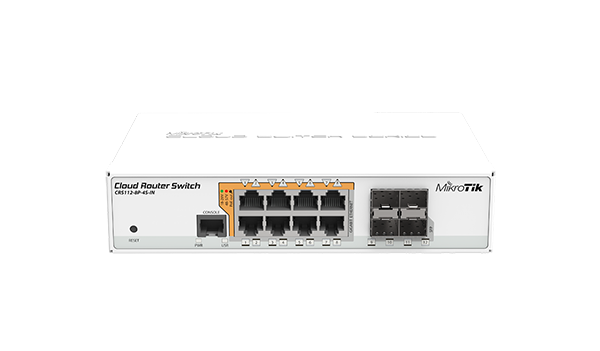

Mikrotik Cloud Router Switch CRS112-8P-4S Mikrotik Cloud Router Switch CRS112-8P-4S - rear view
Mikrotik Cloud Router Switch CRS112-8P-4S - PoE out switch featuring 8 PoE out Gigabit Ethernet ports along with 4 SFP cages in a desktop case. (Rack Mount brackets are included.)

Mikrotik CRS112-8P-4S-IN is an eight Gigabit RJ45 port PoE switch, that offers different power output options: autosensing 802.3af/at PoE/PoE+ and Passive PoE, along with four SFP ports that provide optical fiber connectivity options to support uplinks of up to 1 Gbps.

CRS112-8P-4S-IN is equipped with 12 independent switching ports. A 28 V 3.4 A power supply is already included in the box. There is secondary DC jack on the back of the enclosure that supports a 48-57 V power supply (can be purchased separately).
CRS112-8P-4S-IN can power 802.3af/at devices if 48-57 V DC input is used (unit will automatically detect and provide correct power to devices). Max current is 1 A per port if input voltage is 18-28 V, 450 mA if 48-57 V. Total limit is [email protected] and [email protected] PoE-Out is passed over mode B 4,5 (+) and 7,8 (-) pins

CRS series devices combine the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS.

All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes.

Features include:

  • Eight PoE out gigabit ports
  • PoE out 802.3af/at following standards
  • Separate PSU for passive or 802.3af/at PoE out
  • Per port auto detection of PoE standard
  • Four SFP ports
  • Low voltage PSU included

Level 5 RouterOS license included.

SKU CRS112-8P-4S-IN
Weight 4.50 lbs
Documentation (PDF) Brochure
Data Sheet (PDF) Quick Guide
Mounting Options
Power Supplies

Our price: $169.00
11%
Market price: $189.00
Quantity Price
3-9 Items $167.00
10+ Items $165.00
*Note:
Quantity (47 available)
: *
: *
: *
