ITelite 2.4GHz dual element 9dBi Directional Antenna designed for the 3DR Solo Drone controller

ITelite 2.4GHz dual element 9dBi Directional Antenna designed for the 3DR Solo Drone controller

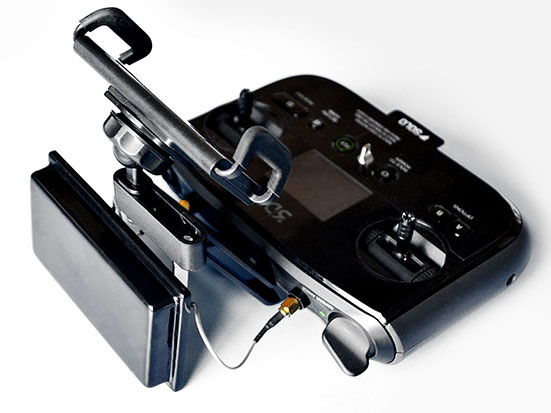

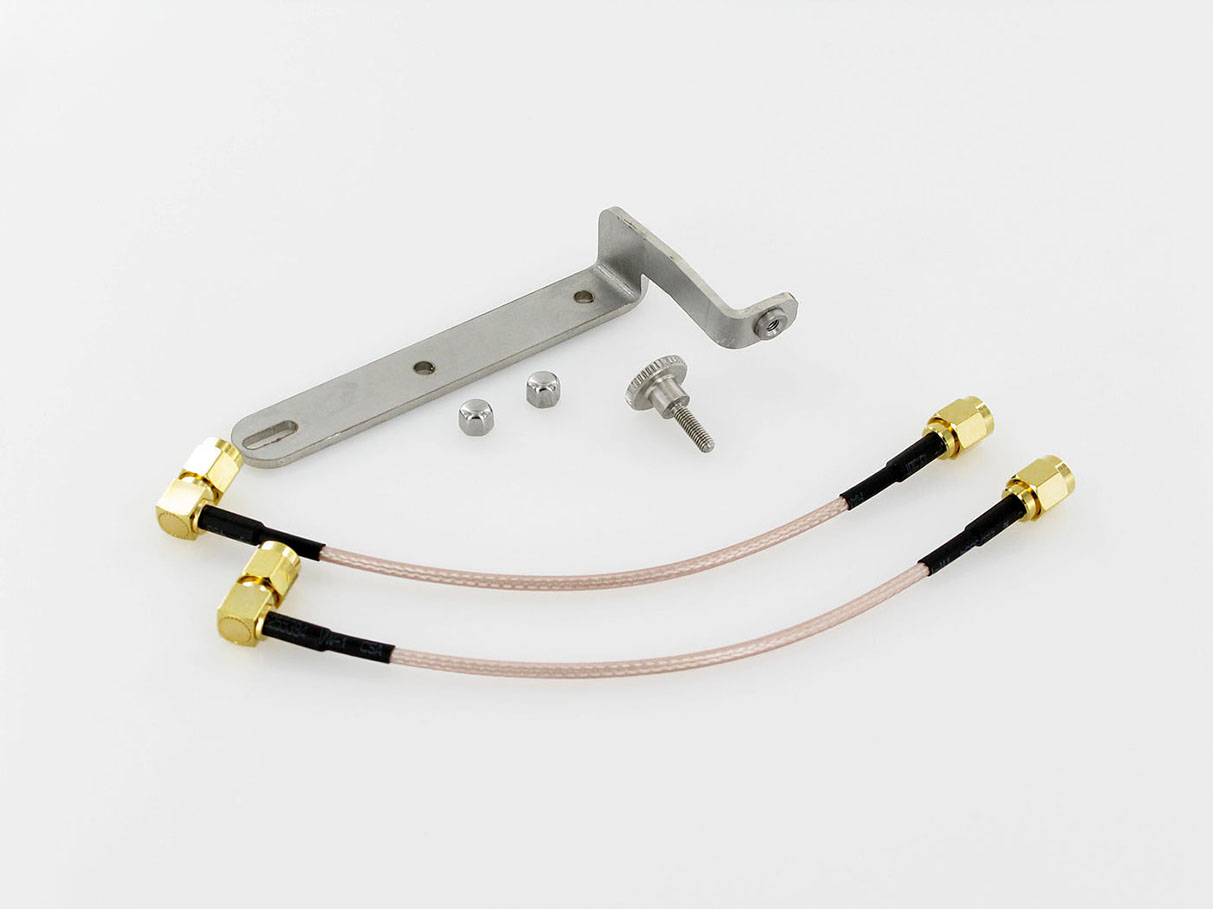

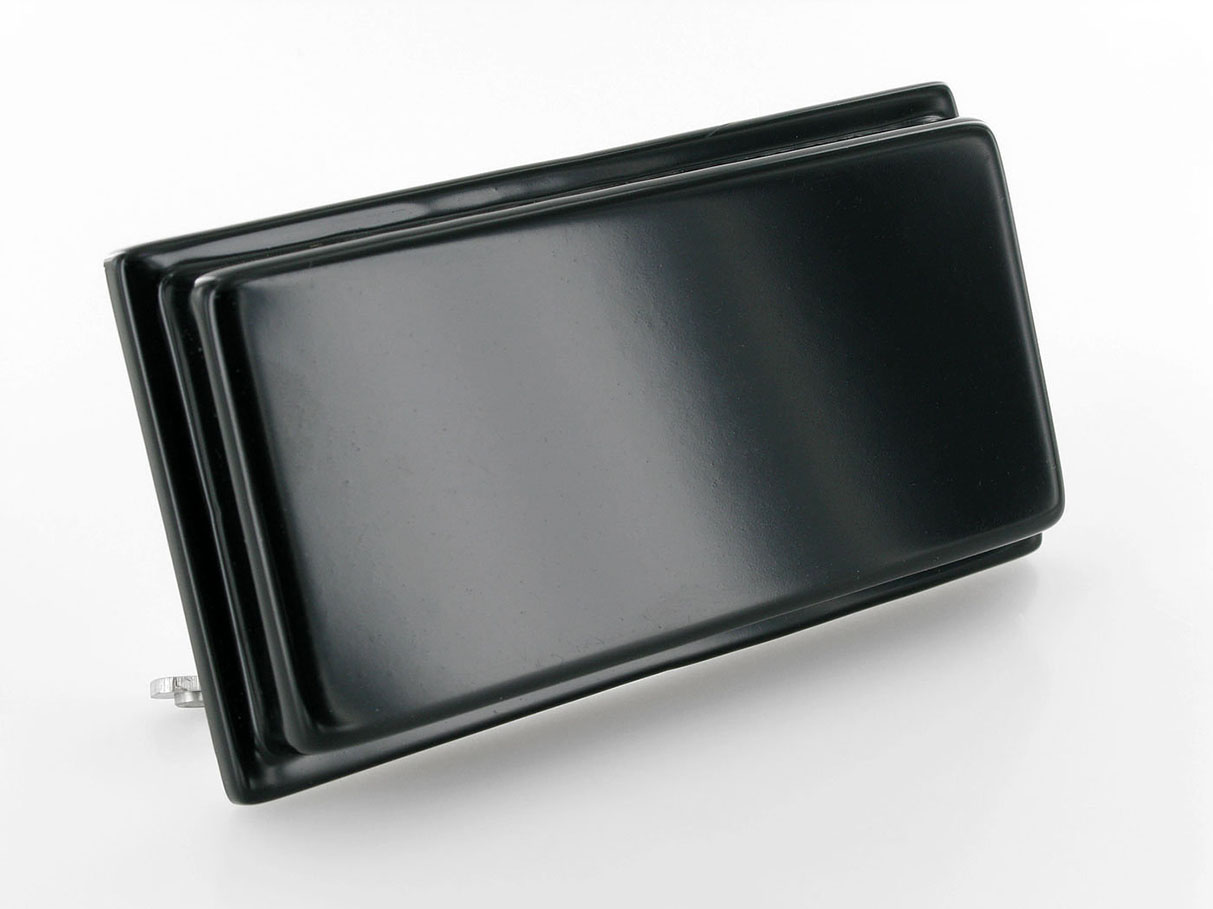

ITE-DBS03.3 Black antenna system for the 3DR Solo ITE-DBS03.3 Black antenna system for the 3DR Solo - top ITE-DBS03.3 Black antenna system for the 3DR Solo - back ITE-DBS03.3 Black antenna system for the 3DR Solo - bracket

ITE-DBS03-ver.3



Key Features:
  • 9 dBi Directional Gain
  • Highest Ingress Protection IP 66
  • High Quality Construction
  • Dual Element Antenna
  • Heavy-Duty Mounting Elements
  • 5 Years Warranty
  • Designed for All Weather Operation
Applications:
  • 2.4 GHz Band Wireless LAN
  • IEEE 802.11b/g/n Systems
  • Directional Application

ITE-DBS03.3 Black antenna system for the 3DR Solo Black antenna system for the 3DR Solo. Comes with specific mounting & necessary cables. No Remote Control modification required. Replaces smaller size ITE-DBS03_v.2 that has been discontinued..



Electrical Properties
Frequency 2.4 GHz
Gain 9dBi
Polarization 2 vertical panels
Beamwidth deg horizontal 80°
Beamwidth deg vertical 80°
VSWR <1.8
Impedance 50 ohm
Front to back ratio > 35 dB
Enclosure Properties
Technology: Microstrip
Material: UV protected
Colour: Black
Min temperature: -40°C / -40°F
Max temperature: 80°C / 176°F
Mechanical Properties
Input Connectors RPSMA to SMA pigtails included
Outside Dimensions 170x90x19mm / 6.6x3.6x0.75"
Weight 156g / 5.5oz
Specification subject to change without notice.

Plots:
SKU ITE-DBS03-ver.3
Weight 1.10 lbs

Our price: $109.00
16%
Market price: $129.00
Quantity Price
10+ Items $99.00
*Note:
Quantity (13 available)
: *
: *
: *
