Key Features:
-
23 dBi Directional Gain
-
Highest Ingress Protection IP 66
-
High Quality Construction
-
Horizontal or Vertical Polarization
-
Heavy-Duty Mounting Elements
-
Easy Elevation and Tilt Adjustment
-
5 Years Warranty
-
Designed for All Weather Operation
|
Applications:
-
5 GHz Band Wireless LAN
-
IEEE 802.11a WLAN Systems
-
Point to Point Application
-
WiMAX
|

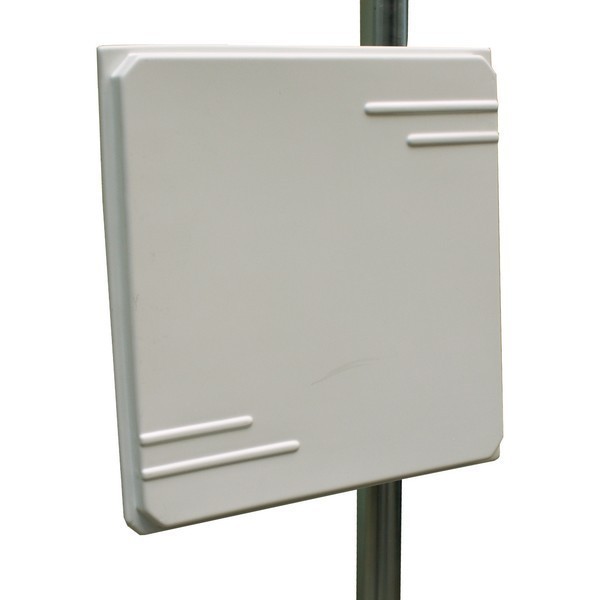

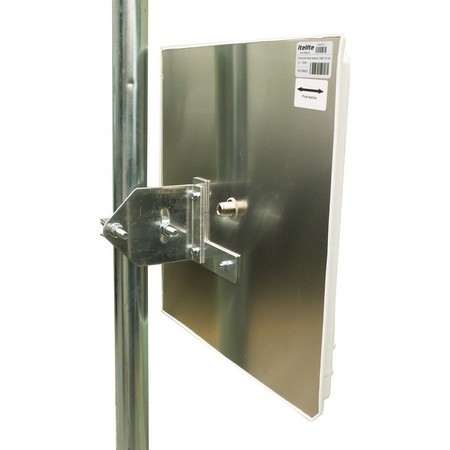

PAT50023 is a panel antenna working in the 5 GHz band with 23 dBi gain that can be mounted for horizontal or vertical polarization. Made with very high quality materials, construction grade aluminium alloy, UV-protected plastic cover and zinc galvanized U-bolt. Designed for operation under severe weather conditions including salt water environment without corrosion. High quality construction of pole mounting elements guarantee easy elevation and easy tilt down as well as rock-stable operation. It can be used as customer premise equipment and also as a small base station.
Electrical Properties |
Frequency |
5.1 - 5.9 GHz |
Gain |
23dBi |
Polarization |
horizontal or vertical |
Beamwidth deg horizontal |
10° |
Beamwidth deg vertical |
10° |
VSWR |
<1.8 |
Impedance |
50 ohm |
Front to back ratio |
> 35 dB |
Lightning protection: |
DC ground |
Enclosure Properties |
Technology: |
Microstrip |
Material: |
UV protected |
Colour: |
White |
Min temperature: |
-40°C / -40°F |
Max temperature: |
80°C / 176°F |
Mechanical Properties |
Input Connector |
N-type female
|
Outside Dimensions |
345x345x20mm / 13.6x13.6x0.8" |
Weight |
1.3kg / 2.9lbs |
Specification subject to change without notice.
Plots:
