Mikrotik RBSXTsqG-5acD-US (US and Canada version) is a super high speed 5GHz wireless device. Dual polarization 802.11ac and Nv2 TDMA technology help to achieve 540Mbit real throughput speed. New!

Mikrotik RBSXTsqG-5acD-US (US and Canada version) is a super high speed 5GHz wireless device. Dual polarization 802.11ac and Nv2 TDMA technology help to achieve 540Mbit real throughput speed. New!

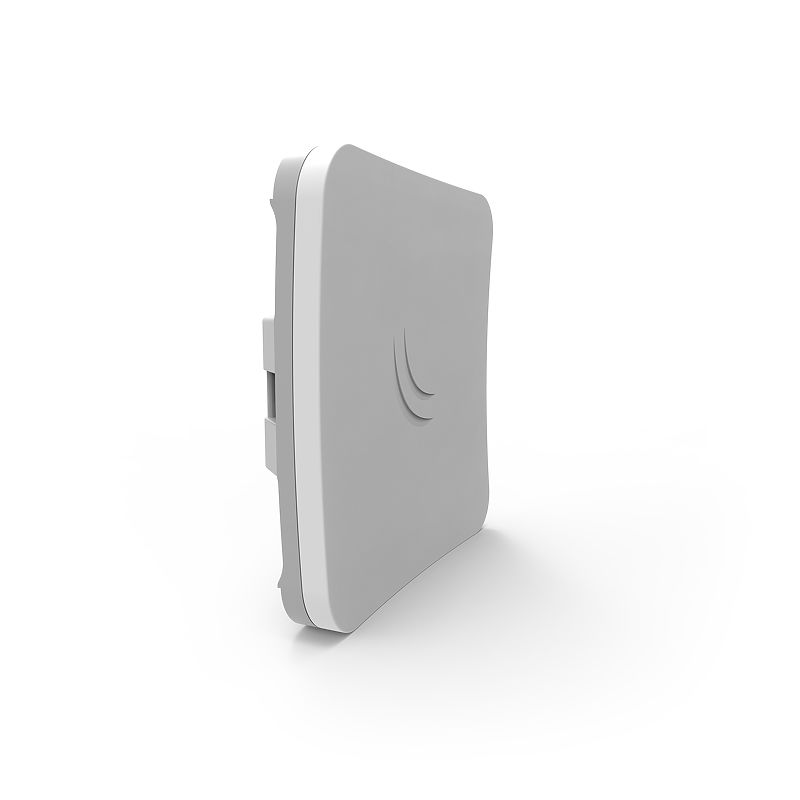

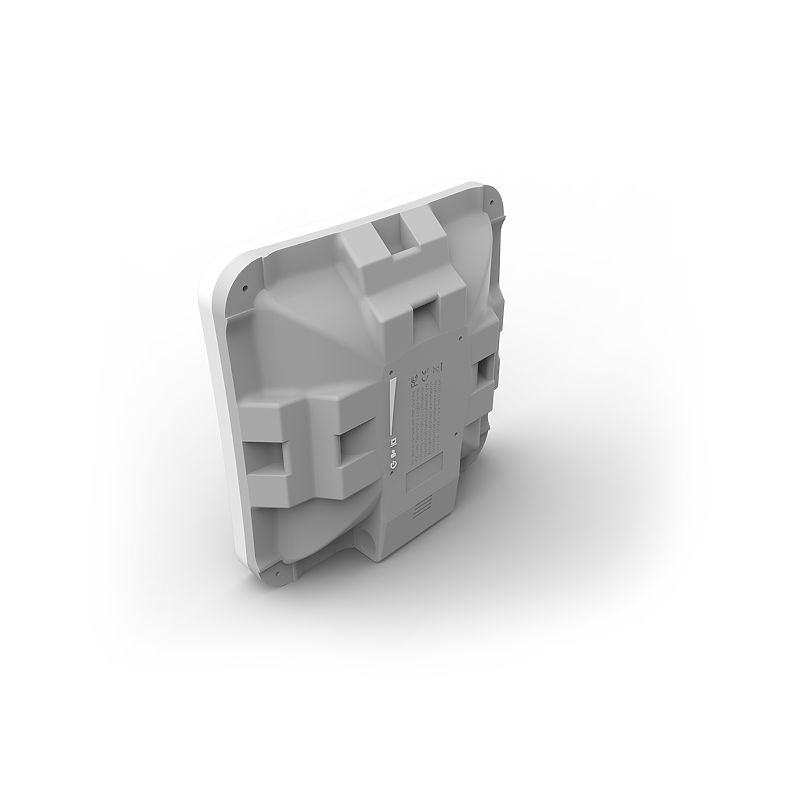

The Mikrotik RouterBoard SXTsq 5 ac is a compact and lightweight outdoor 5Ghz 802.11ac wireless device with an integrated antenna, perfect for point-to-point links or as a CPE unit. The device includes one 10/100/1000 Mbit Ethernet port to fully utilize speeds that 802.11ac protocol provides.

The SXTsq 5 ac retains a 16 dBi antenna like the SXT 5 ac, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced - the SXTsq is two times thinner.

- SXTsq 5 ac-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
- SXTsq 5 ac (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

  • IPQ-4018 ARM 716MHz 4-core CPU with 256MB RAM
  • Onboard voltage and temperature monitors
  • extended temperature range -30C to +80C
  • Dual chain 5GHz 802.11ac IPQ-4018 (ARM) wireless module
  • ESD protection +/- 10kV on RF ports
  • 20/40/80MHz supported channel widths
  • 316mW RF output (25dBm)
  • Dual pol. 25deg, 5GHz antenna, 16dBi, -35 dB port to port isolation
  • 1 Gigabit 10/100/1000 Ethernet port
  • Passive Power over Ethernet: 10-28V DC
  • MikroTik RouterOS, Level 3 license
  • FCC, CE, ROHS Certifications
  • up to 540Mbps data throughput (866Mbps radio throughput)
  • low latency Point to Point
SKU RBSXTsqG-5acD-US
Weight 2.00 lbs
Data Sheet (PDF) SXT ac series Brochure


Our price: $55.00
15%
Market price: $65.00
Quantity (7 available)
: *
: *
: *
