Mikrotik CRS504-4XQ-IN with 4x100G QSFP28 - your doorway to the world of 100 Gigabit networking - New!

Mikrotik CRS504-4XQ-IN with 4x100G QSFP28 - your doorway to the world of 100 Gigabit networking - New!

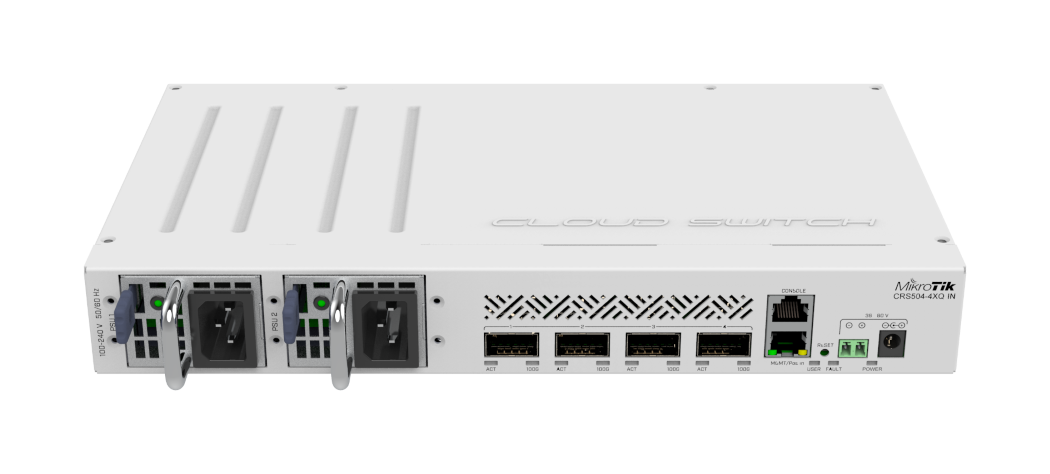

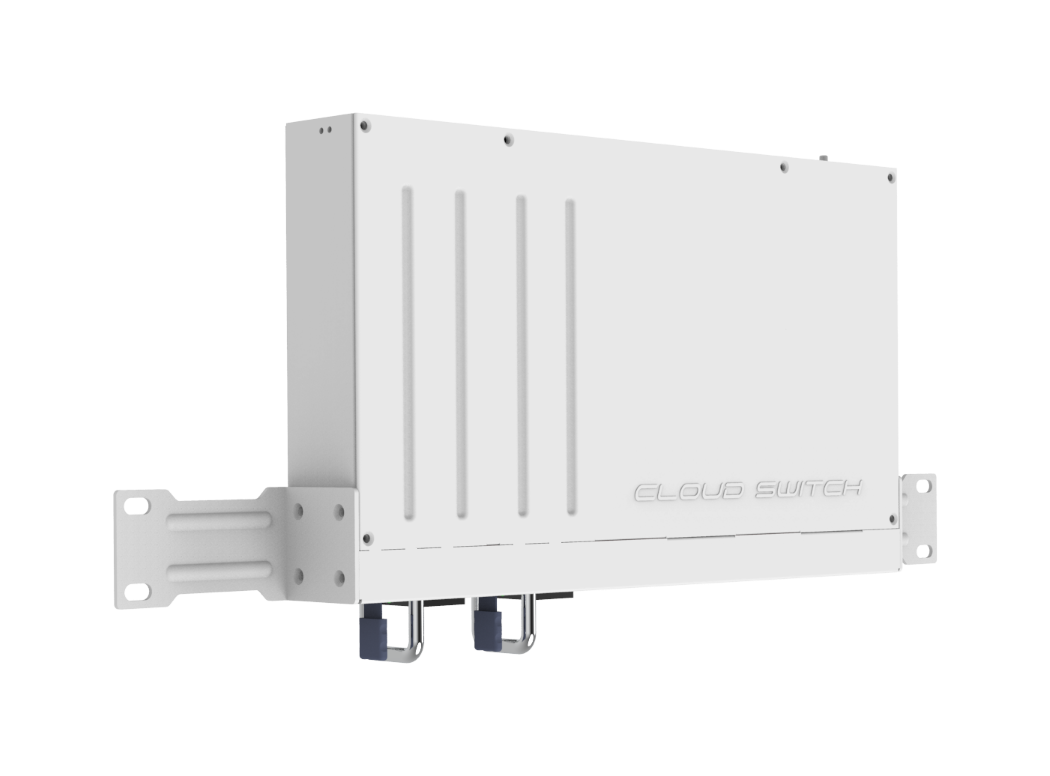

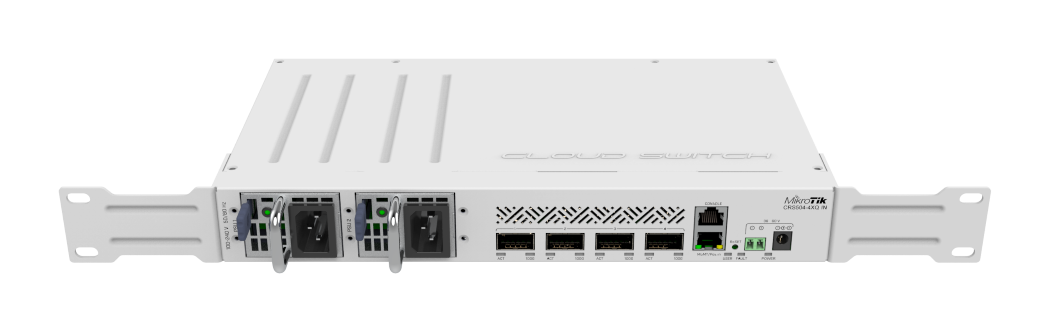

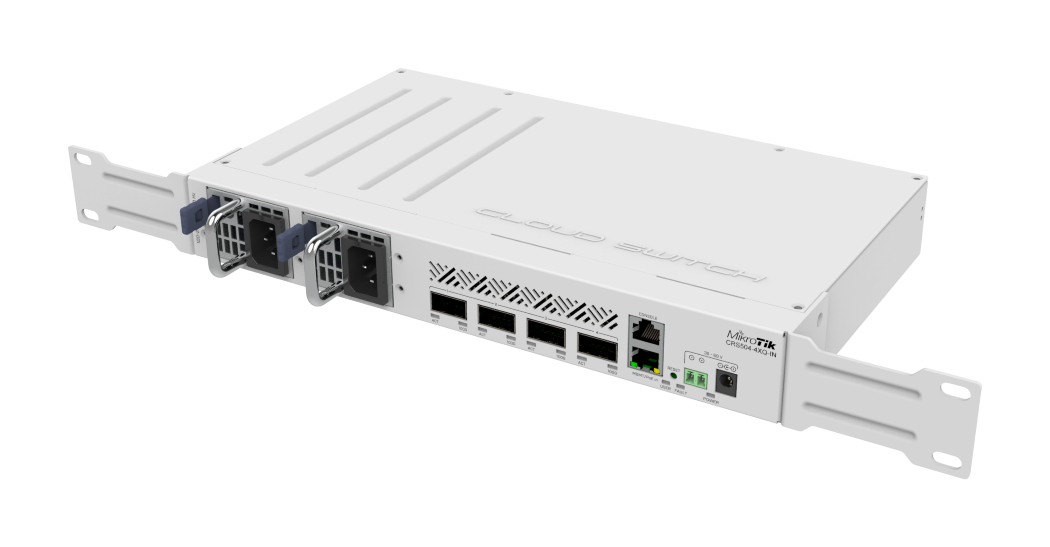

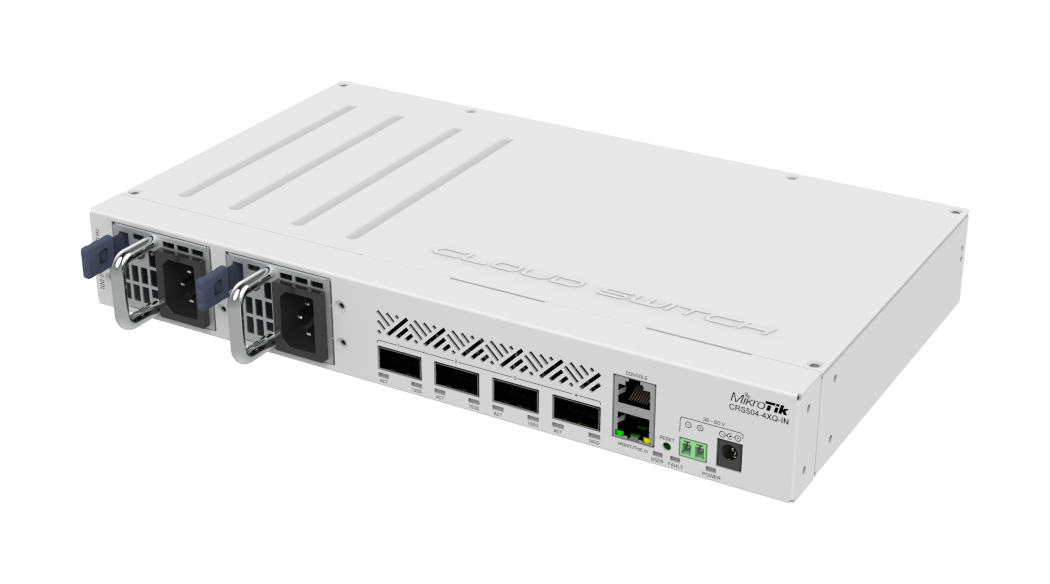

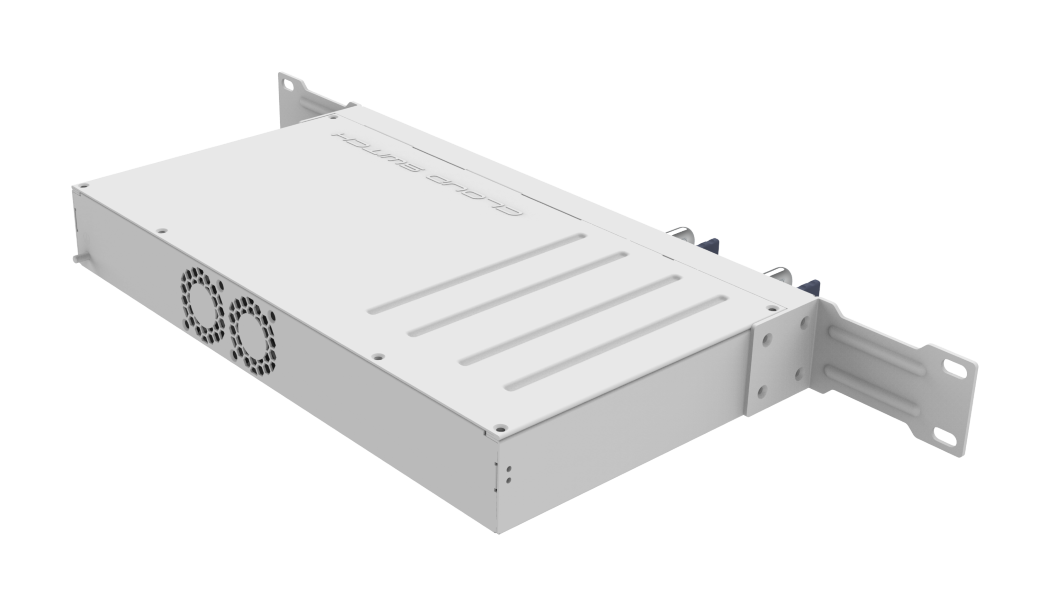

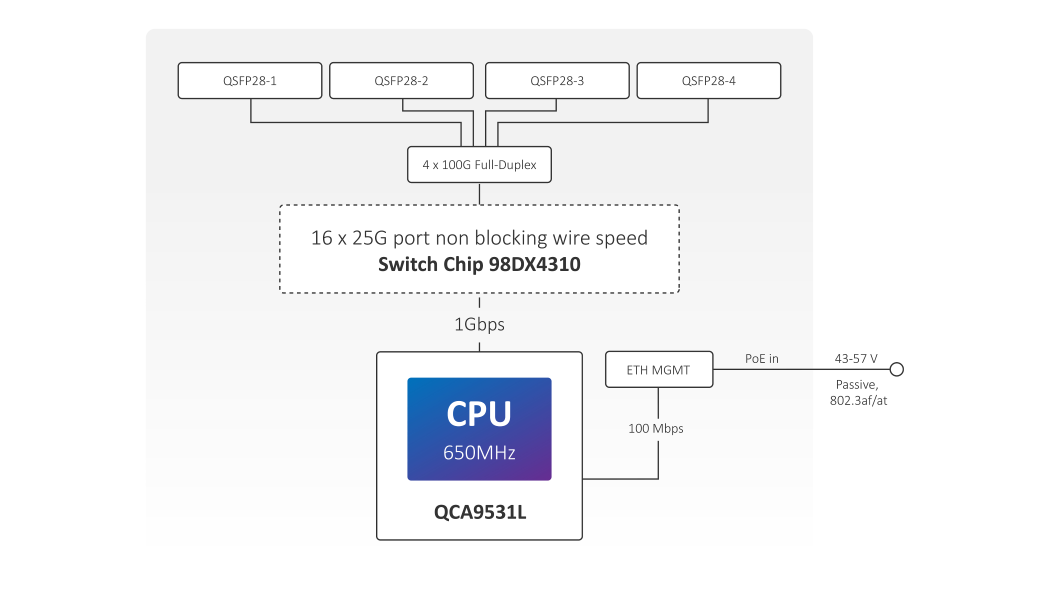

CRS504-4XQ-IN front view CRS504-4XQ-IN front view CRS504-4XQ-IN rear view CRS504-4XQ-IN front view CRS504-4XQ-IN front view CRS504-4XQ-IN wall mount top view CRS504-4XQ-IN Block Diagram CRS504-4XQ-IN Network Example
Mikrotik CRS504-4XQ-IN with 4x100G QSFP28 - your doorway to the world of 100 Gigabit networking.

Your most affordable, compact, energy-efficient doorway to the world of 100 Gigabit networking. This switch is the next step in upgrading existing 10 or 25 Gigabit networks. Multiple powering options, dual hot-swap power supplies.

Our 100 Gigabit family keeps expanding – you’ve already seen the incredible CCR2216 100 Gigabit router. Now it’s time for a matching switch – the CRS504-4XQ-IN. The small size combined with the low power consumption (25W without attachments!) is perfect to start expanding 100 Gigabit networking in everyday setups. This speed is no longer limited to data centers, ISPs, and large offices. You too can upgrade your 10 or 25 Gigabit network and join the one hundred club!

There are four 100 Gigabit QSFP28 ports. Use them to connect other 100 Gigabit devices or grab a breakout cable to connect multiple 25 Gigabit devices: each port is connected to four 25 Gigabit lines, allowing you to connect 16 x 25 Gigabit devices. In fact, you can mix and match all kinds of connections this way: 100 Gigabits on one port, 40 Gigabits on the other, 4x25 Gigabits on the third, and maybe even some 10G or 1G cables on the fourth. Obviously, there is an Ethernet port for management purposes as well.

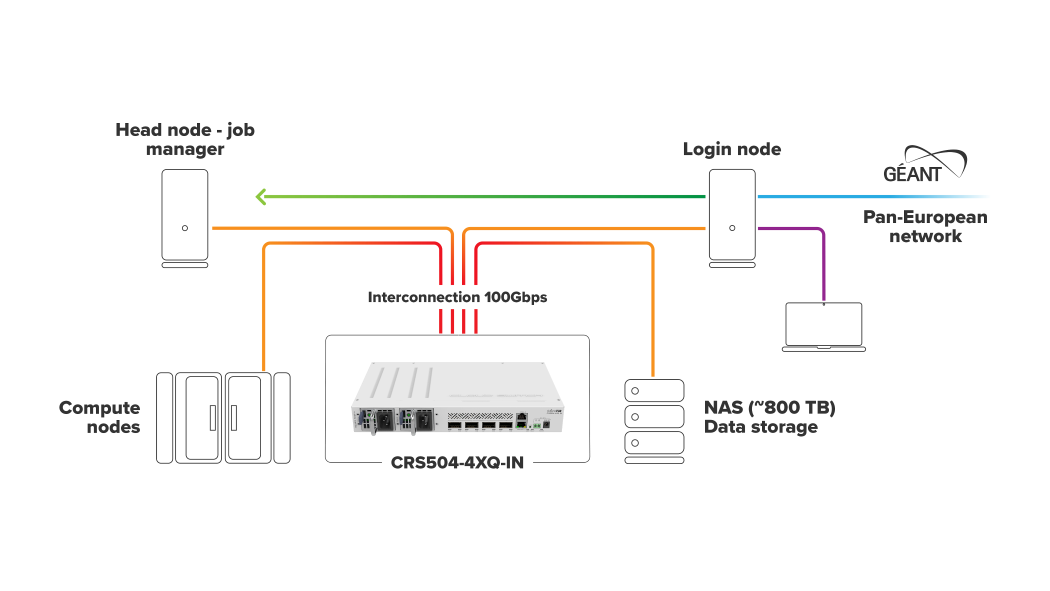

We’ve been using this switch for quite some time now in the Genomics Data Network project. A high-capacity data network for our local scientists working on ground-breaking cancer treatments. Genome data can take up a lot of space, so you need exceptionally fast connections there. Also, with these devices, Latvia became the first Baltic country to establish a 100 Gigabit connection to the pan-European research network.

With multiple powering options and the ability to be mounted on the wall, this switch will make any system administrator happy.

Special rack mount ears for installing unit into the standard 19 inch rack or for wall mounting are provided.

Level 5 RouterOS license included.

SKU CRS504-4XQ-IN
Weight 8.10 lbs
Documentation (PDF) Brochure
Data Sheet (PDF) YouTube Video

Our price: $779.00
6%
Market price: $829.00
Quantity (11 available)
: *
: *
: *
