Mikrotik RBDiscG-5acD (export version) DISC Lite5 ac is a super high speed 5GHz wireless device. Dual polarization 802.11ac and Nv2 TDMA technology help to achieve 540Mbit real throughput speed. New!

Mikrotik RBDiscG-5acD (export version) DISC Lite5 ac is a super high speed 5GHz wireless device. Dual polarization 802.11ac and Nv2 TDMA technology help to achieve 540Mbit real throughput speed. New!

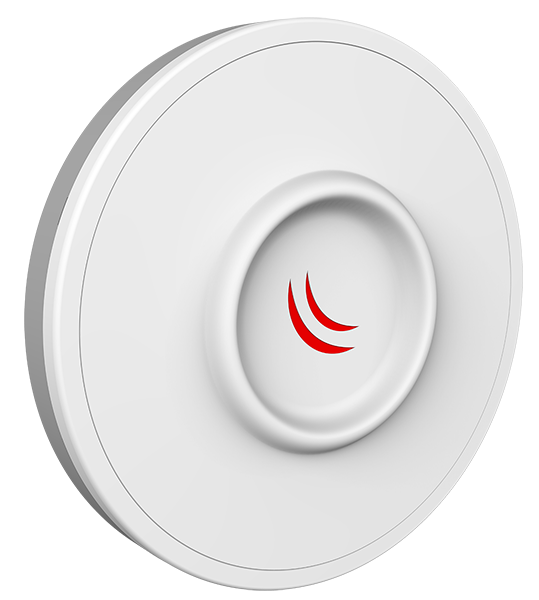

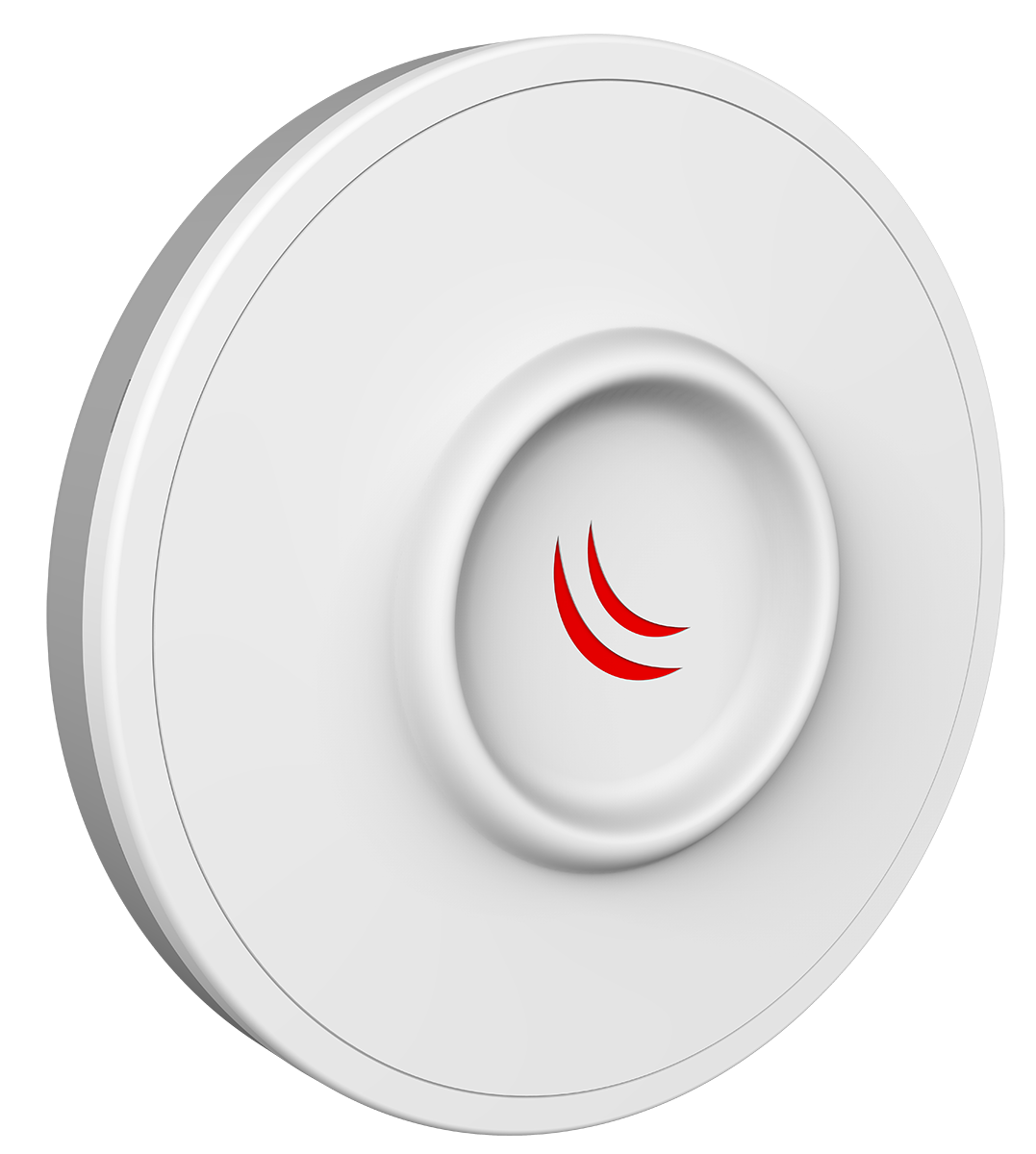

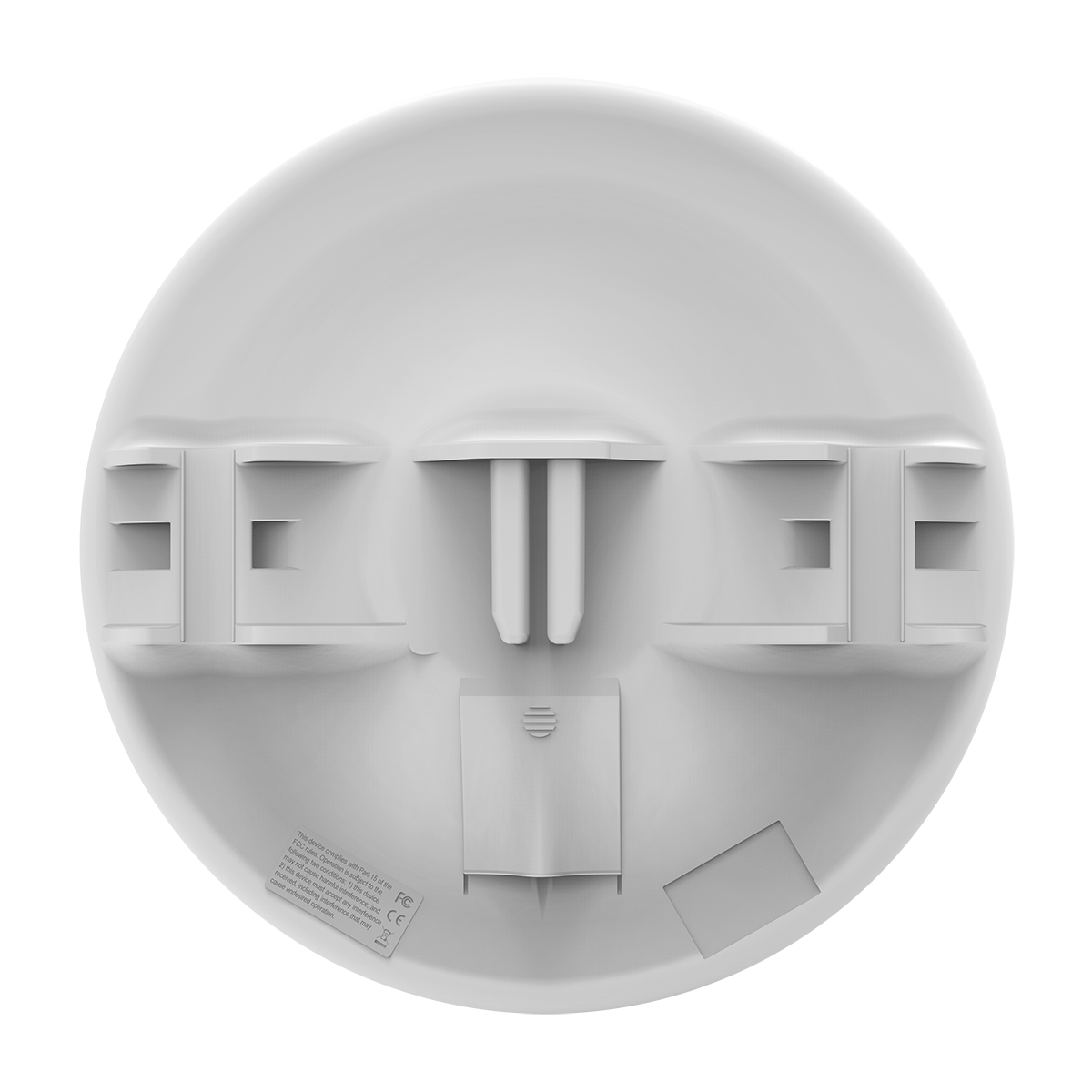

The DISC is a low cost high gain 5 GHz CPE. We have improved antenna design, added Gigabit Ethernet port and 802.11a/n/ac support to achieve even more speed on longer distances.

DISC Lite5 ac is equipped with 21 dBi dual chain antenna, 802.11a/n/ac integrated wireless, 716 MHz CPU, 256 MB RAM, 1x Gigabit Ethernet port and RouterOS Level 3 license. It comes complete with a power supply, Gigabit PoE injector and a mounting ring. The device is also compatible with our SXT mounting systems, including the quickMOUNT pro series.

The RouterOS Level 3 allows to use the DISC Lite5 ac as a CPE or for 5 GHz Point-to-Point links.

  • IPQ-4018 (ARM 32-bit) 716MHz 4 core CPU with 256MB RAM
  • tested temperature range -40C to +70C
  • Dual chain 5GHz 802.11ac IPQ-4018 wireless module
  • 20/40/80MHz supported channel widths
  • 320mW RF output (25dBm)
  • Dual pol. 12 deg, 21dBi, 5GHz antenna with -20 dB port to port isolation
  • 1 Gigabit 10/100/1000 Ethernet port
  • Passive Power over Ethernet: 10-32V DC
  • Dimensions: 265mm (10.4in) diameter, 80mm (3.15in) depth
  • MikroTik RouterOS, Level3 license
  • FCC, CE, ROHS Certifications
  • up to 540Mbps data throughput (866Mbps radio throughput)
  • low latency Point to Point
SKU RBDiscG-5acD
Weight 4.00 lbs
Documentation (PDF) Brochure
Data Sheet (PDF) Quick Guide

Our price: $58.00
16%
Market price: $69.00
Quantity Price
8-15 Items $56.00
16+ Items $54.00
*Note:
Quantity (18 available)
: *
: *
: *
