Mikrotik Cloud Router Switch CRS328-4C-20S-4S+RM SFP switch, 20 SFP ports with 4 SFP+ cages and 4 combo ports in a 1U rack mount case - New!

Mikrotik Cloud Router Switch CRS328-4C-20S-4S+RM SFP switch, 20 SFP ports with 4 SFP+ cages and 4 combo ports in a 1U rack mount case - New!

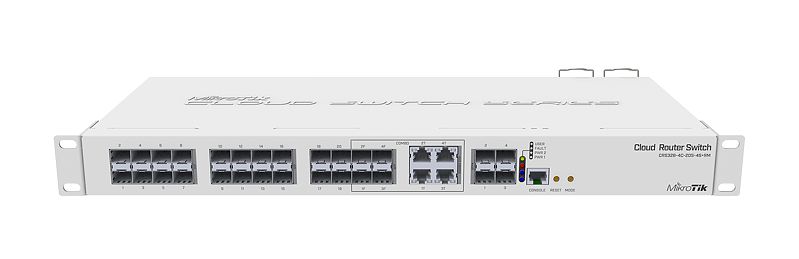

Mikrotik CRS328-4C-20S-4S+RM is a 28 independent port switch with a combo group. This device has twenty SFP ports, four SFP+ ports for 10G modules and four combo ports, where you can choose to use SFP or RJ45 ports from the combo group. These ports can also be software selected, so if you have plugged in all eight cables, you can use scripting, to decide which four combo ports will be active.

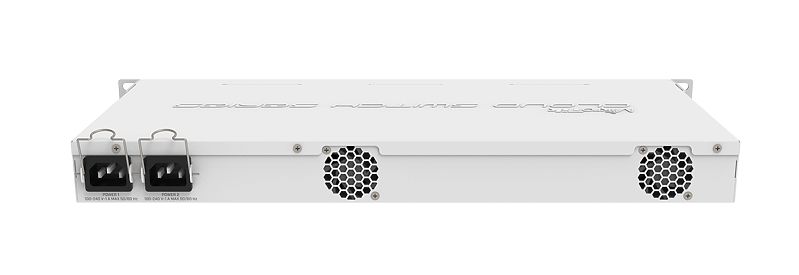

The device comes in a 1U rackmount case with two 100-240 V power supplies with failover functionality. A RJ45 console port is available for management and debugging, and a mode button can be customised to execute any RouterOS commands.

The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS. If you prefer to have a simplified operating system with only switch specific features, use SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings. All the feature set comes with our disruptive price, providing best price/performance on the market.

Quick Specifications:

  • 24 Gigabit Ethernet ports
  • 4 SFP+ ports
  • RJ45 serial console port
  • Non-Blocking throughput: 64 Gbps
  • Switching capacity: 128 Gbps
  • Forwarding rate: 95.2 Mpps
  • Maximum power consumption: 44 W (without PoE devices connected)
  • Supports PoE+ IEEE 802.3at/af and 26 V Passive PoE (per port individually selected/auto)
  • Temperature based fan control
  • 1U rackmount
  • Selectable power output per port (26 / 53 V)

Switching Features:

  • Non-blocking Layer 2 switching capacity
  • 16K host table
  • IEEE 802.1Q VLAN
  • Supports up to 4K simultaneous VLANs
  • Port isolation
  • Port security
  • Broadcast storm control
  • Port mirroring of ingress/egress traffic
  • STP / RSTP / MSTP
  • Access Control List
  • MikroTik neighbor discovery
  • SNMP
  • 10218-byte jumbo frames support
  • IGMP snooping
  • IEEE 802.3ad and static link aggregation
  • Level 5 RouterOS license included.

SKU CRS328-4C-20S-4S+RM
Weight 12.50 lbs
Documentation (PDF) Brochure
Data Sheet (PDF) Quick Guide

Our price: $429.00
12%
Market price: $489.00
Quantity Price
2-5 Items $416.00
6+ Items $399.00
*Note:
Quantity (38 available)
: *
: *
: *
