Home :: Mikrotik Rack Mount Routers :: Mikrotik RouterBoard CCR1009-7G-1C-1S+PC High Performance Cloud Core Router with 8-10/100/1000 ethernet ports, 1 SFP port, 1 SFP+ port, external power supply and RouterOS Level 6 license - New!

Mikrotik RouterBoard CCR1009-7G-1C-1S+PC High Performance Cloud Core Router with 8-10/100/1000 ethernet ports, 1 SFP port, 1 SFP+ port, external power supply and RouterOS Level 6 license - New!

Mikrotik RouterBoard CCR1009-7G-1C-1S+PC High Performance Cloud Core Router with 8-10/100/1000 ethernet ports, 1 SFP port, 1 SFP+ port, external power supply and RouterOS Level 6 license - New!

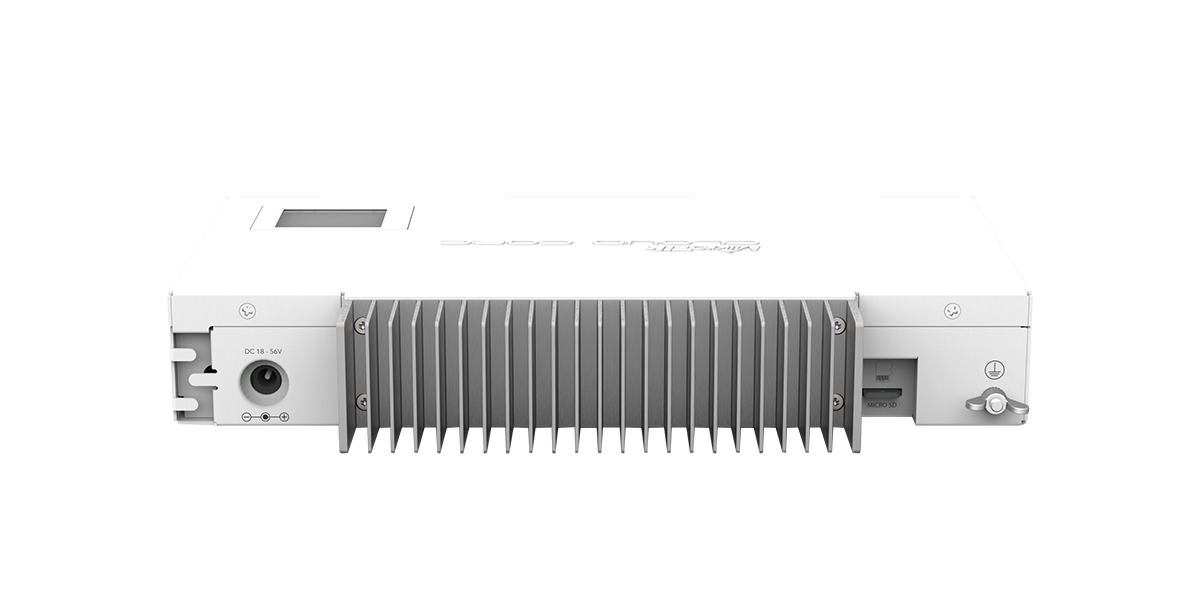

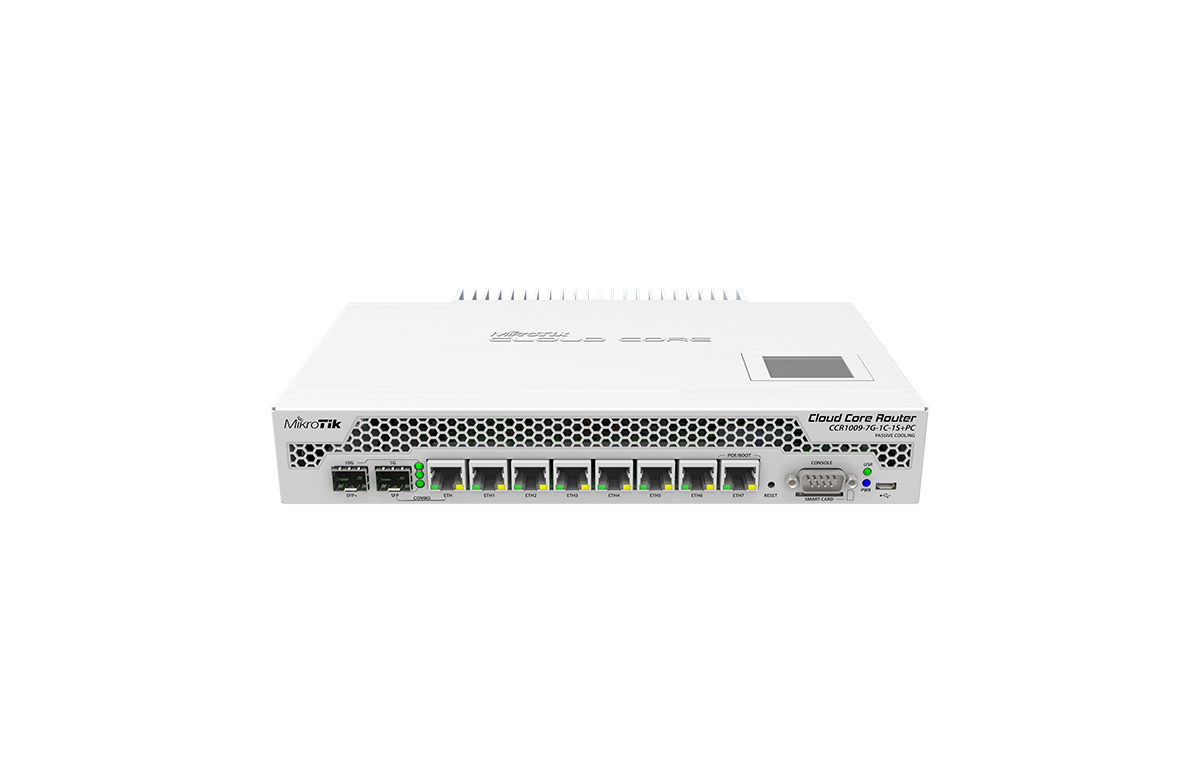

Mikrotik RouterBoard CCR1009-7G-1C-1S+PC High Performance Cloud Core Router Mikrotik RouterBoard CCR1009-7G-1C-1S+PC Rear View

CCR1009-7G-1C-1S+PC is a low cost industrial grade router with Tilera 9 core CPU! Amazing power and performance for value - this is our full featured, low end CCR device, the Cloud Core Router (CCR1009). If you need many packets per second on a budget - Cloud Core Router with 9 cores is your best choice.

The device comes in a compact desktop case with passive cooling. It has one SFP port, one SFP+ port, eight Gigabit ethernet ports, a serial console port, a USB port, and an external power supply.

This new Passive Cooling (PC) version CCR includes internal heat pipes for high reliability.

The CCR1009-8G-1S-1S+PC has its 2GB of DDR3 800MHz RAM soldered directly to the motherboard and cannot be expanded.

New generation CPU

  •  9 core CPU
  •  1.2GHz clock per core
  •  12 Mbytes total on-chip cache
  •  State of the art TILE GX architecture


High performance

  •  8 mpps standard forwarding
  •  24 mpps fastpath forwarding (wire speed for all ports)
  •  Up to16Gbit/s throughput


Full set of features

  •  compact desktop case
  •  wall mount and rack mount options included
  •  8x Gigabit ports
  •  1 SFP port
  •  1 SFP+ port
  •  1 serial console port
  •  Ports directly connected to CPU
SKU CCR1009-7G-1C-1S+PC
Weight 8.00 lbs
Documentation (PDF) Brochure
Power Cord

Our price: $495.00
10%
Market price: $549.00
Quantity Price
2-4 Items $485.00
5-9 Items $475.00
10+ Items $465.00
*Note:
Quantity (7 available)
: *
: *
: *
