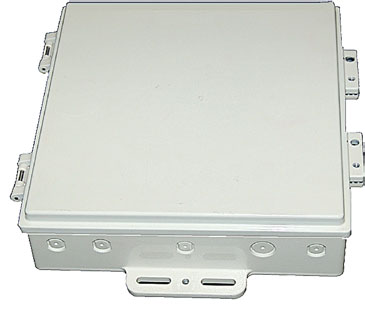

| DCE10-H-001 HD RooTennaź DCE-10x10x2 hinged die-cast enclosure only.
HD RooTennaź Enclosure offers 900 to 5850 MHz Operation options
The HD RooTennaź from Laird Technologies is an innovative antenna system which gives the
operator ultimate system flexibility. The die-cast enclosure is available as a stand-alone enclosure,
with an integrated low-gain antenna or with a detachable high-gain panel antenna. Antennas
are wide band for spectral flexibility.
Radomes are UV resistant ASA plastic. Hardware is stainless steel. The antenna systems come
with a pigtail cable with choice of connectors to adapt to any available radio equipment.
There is a removable and customizable user mounting plate inside for mounting electronics.
The antenna models come standard with Laird Technologies patented RJ45-ECS field
replaceable ethernet connector feedthru.
The die-cast enclosure can be pole or wall mounted. A heavy duty tilt bracket is available
for those installations requiring up or downtilt. Eleven (11) engineered knockouts are provided;
9 sized for N connectors and 2 sized for a cable feedthru.
Select the proper pigtail to match your radio. (Pigtail is a coaxial cable the connects the antenna element to the radio card.)
|
